Light Source / Power System

Voltage : AC100~240V 50/60Hz
Power : 280W
LED chip : Exclusive Customized,OEM by Top factory in the world
LED QTY : 90pcs*3W
LED Theory life span : 30% weaker after 20000h
Lumen : 6800lm
Efficiency : 34lm/W
CRI : 91-97
TLCI : 91-97

Color / GOBO / Effects

Color Temperature : 2800K~10000K linear adjustment
Color : Red, Orange Red, Green Mint, Green, Blue , Indigo 6 basic color, HSIC color Marco system

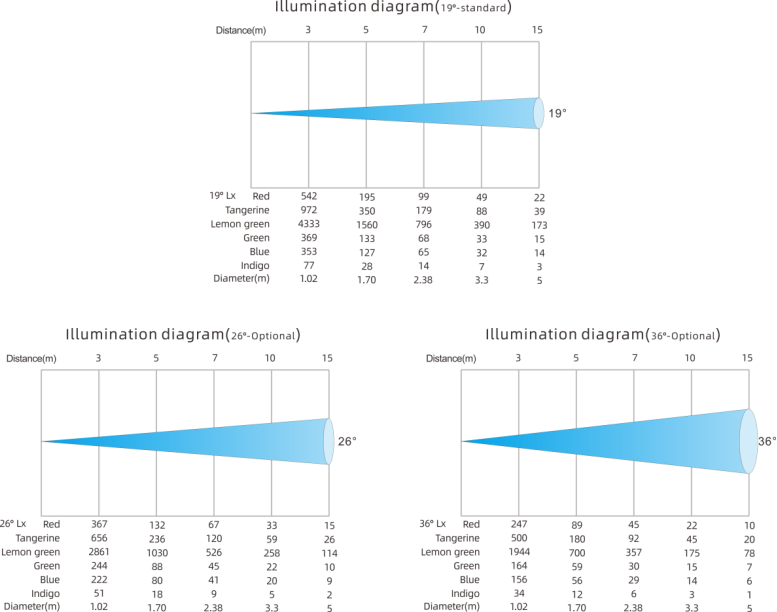

Lens : 19 degree, 26 degree, 36 degree,LED Cyclorama Lens

Control System

Control Model : DMX 512 , RDM
Channel : 11CH
Dimmer : 16 bit flicker-free Dimmer
Refresh Frequency : 0.8MHz
Strobe : 1~30 times/seconds

Other functions

Super Silent: 28dB,no interference to the use site.
High illumination: even light gradient, clear and clean cutting edge.

Appearance Parameters

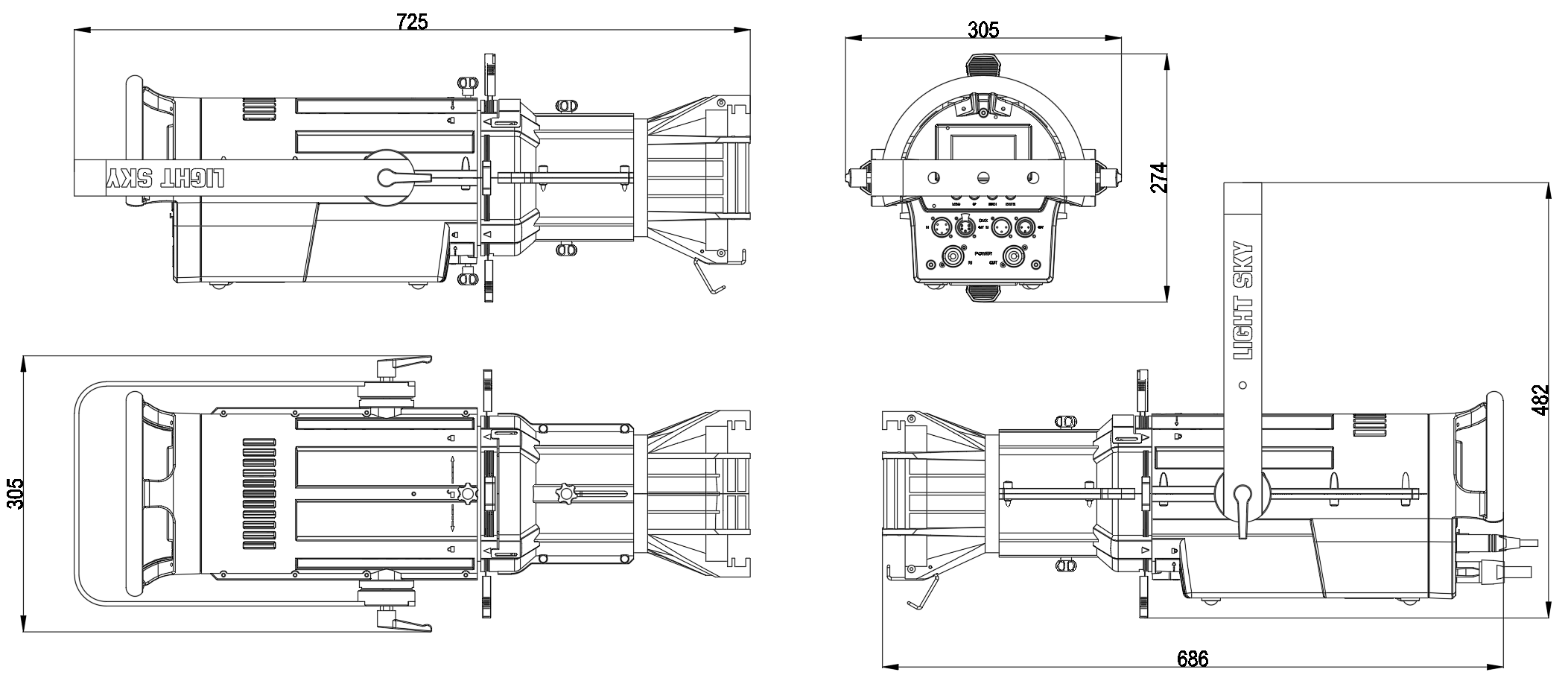

Light size : 725x305x482mm
Single Package Light Size: 340x290x745mm
N.W : Light:7.3Kg
G.W : Light:9.5Kg
Single Package Lens Size : 340x290x380mm
N.W : Lens:2.4Kg
G.W : Lens:3.5Kg

4Pcs in 1 Package Light Size : 710x610x775mm
N.W : Light:29.2Kg
G.W : Light:40.7Kg
4Pcs in 1 Package Lens Size : 710x610x410mm
N.W : Lens:9.6Kg
G.W : Lens:16.2Kg
