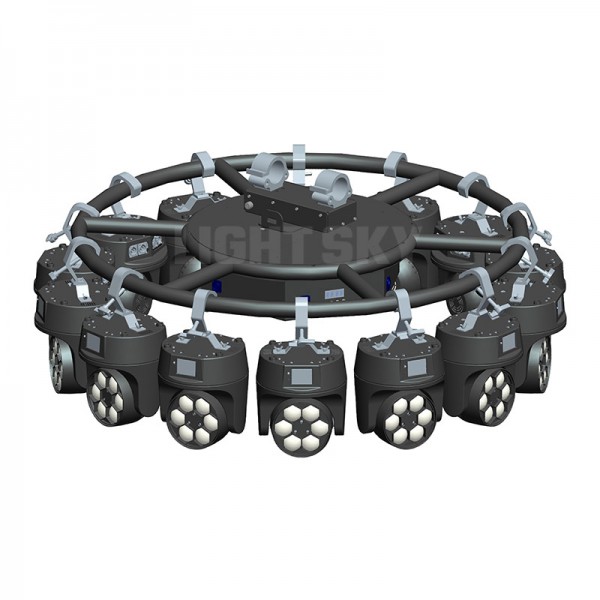

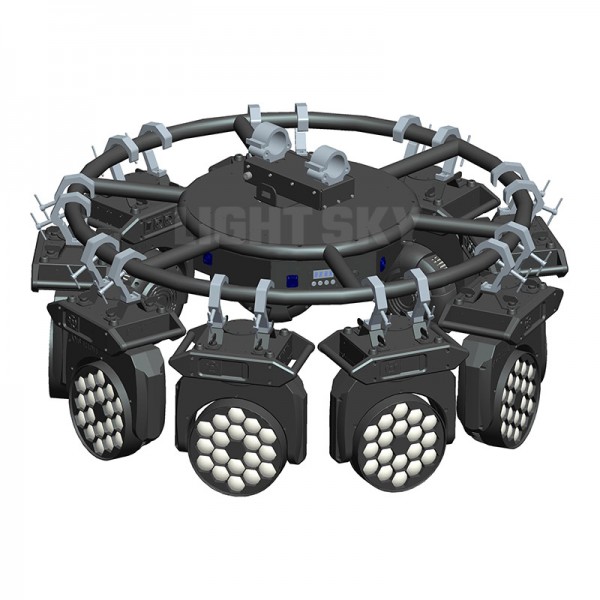

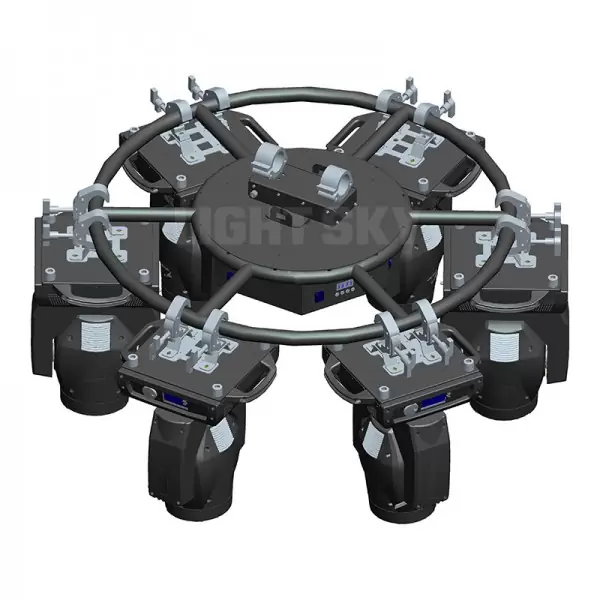

Model : Super Truss

Voltage : 220V/50Hz
Maximum Power Capacity : 2200W
Weight Capacity:110kg ( no includes its own Weight: 36.5kg)
Truss Diameter : 1140 (mm)
Truss Material : 6061 Aluminium, Pipe Diameter : φ40mm ,Thickness of Pipe : 3mm
Rotation Direction : Clockwise and Anti-clockwise direction
Rotation Speed : 3-58 seconds/ circle , the speed can be adjustable
Control Mode : DMX512
Product Size: 1140×1140×345MM
Carton Size : 1190×1190×410MM
N.W : 36.5 KG
G.W 48 KG
Flight Case Size : 1220×1220×555MM
N.W : 36.5KG
G.W: 97 kG



1、Please make sure the hanging truss diameter is not less than 40-60mm, the position to install rotation circle truss could undertake minimum 150kg .
2、Please make sure the qualified technician to install the equipment and connect the power cable .
3、Please make sure the frequency, voltage, Input Power and Maximum lighting fixture quantity accord with the marked data sticker on the equipment. Damaged Power Cable is not allowed.
4、Weight Capacity: 110 kg (excludes its own Weight: 36.5kg)
5、Lighting fixtures should be distributed uniformly to make sure the safety.
6、This rotation system’s voltage is 220V, Maximum Power capacity is 2200W.
