Light Source / Power System

Input Voltage : AC100 ~ 240V 50 / 60Hz
Power Consumption : 190W
LED chip : 3W CREE RGBW LED chip
LED Quantity : 61pcs; (R, G, B 17pcs each, W 10pcs)
Chip Driving Current : 950mA
LED chip Lifespan : 30% weaker after 20000h.
Strobe : 1-30 times / sec Electronic strobe and random strobe
Dimming : 65536-level flicker-free electronic dimming

Color / GOBO / Effects

Facular Angle : with ZOOM function, 10-50 ° electronic zoom
Color mixing system : RGB color mixing system, flicker-free and rainbow effect

Control System

Control mode : DMX512, stand-alone mode, master / slave mode
Channel mode : Standard 12CHS, 16Bit 12 CHS, RGB 5 CHS, HSI 5 CHS
Control panel : LED screen, button control

Other functions

Working environment : Temperature -10-40 ℃; Humidity 5% -95%

Appearance Parameters

Structural design : die-cast aluminum alloy split thermal structure design, with good thermal performance
IP Rate : IP65
C E : Conforms to EU Low Voltage Directive 2014/35 / EU and Electromagnetic Compatibility Directive 2014/30 / EU.

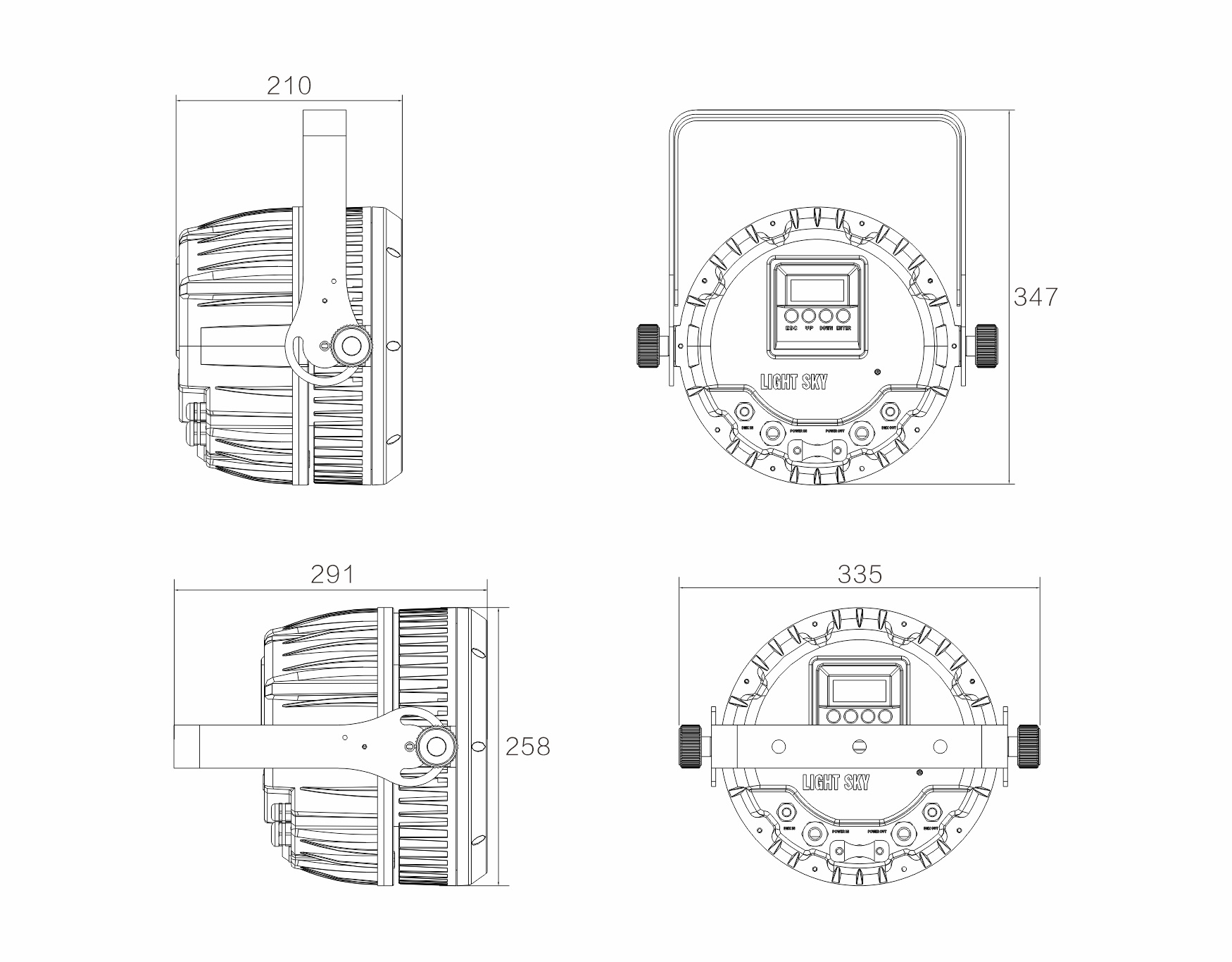

Light size : 258 × 335 × 291mm
N.W : 8.7Kg       G.W : 10Kg
Carton Package : 340 × 340 × 356mm (Single pcs )
Flight Case : 910 × 790 × 500mm (6pcs in 1)
N.W : 53Kg        G.W : 86Kg
