Light source & Optics

Light Source:120W Laser module

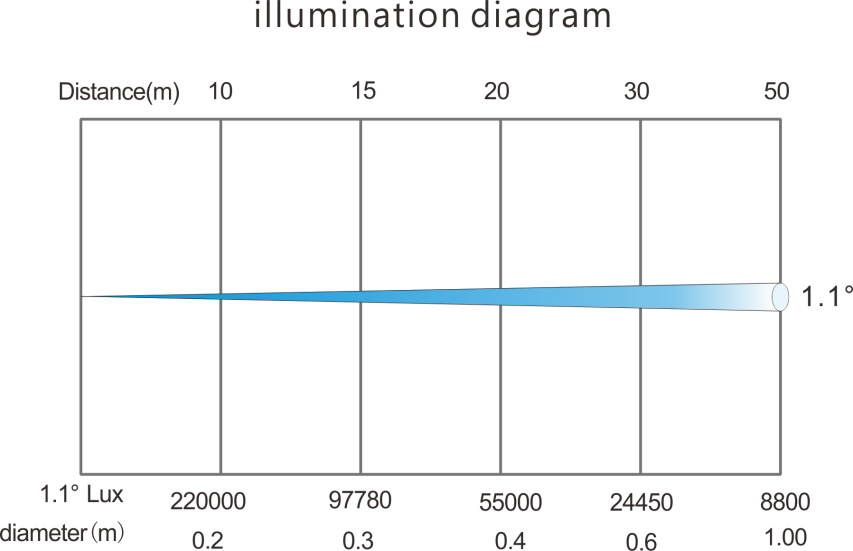

Beam Angle: 1.1°

Optical Lens: φ128mm High Definition Lens

Light Source Color Temperature: 10000 K

Illuminance: 220,000 lux @ 10m

Laser source life expectancy: 12,000 hours*

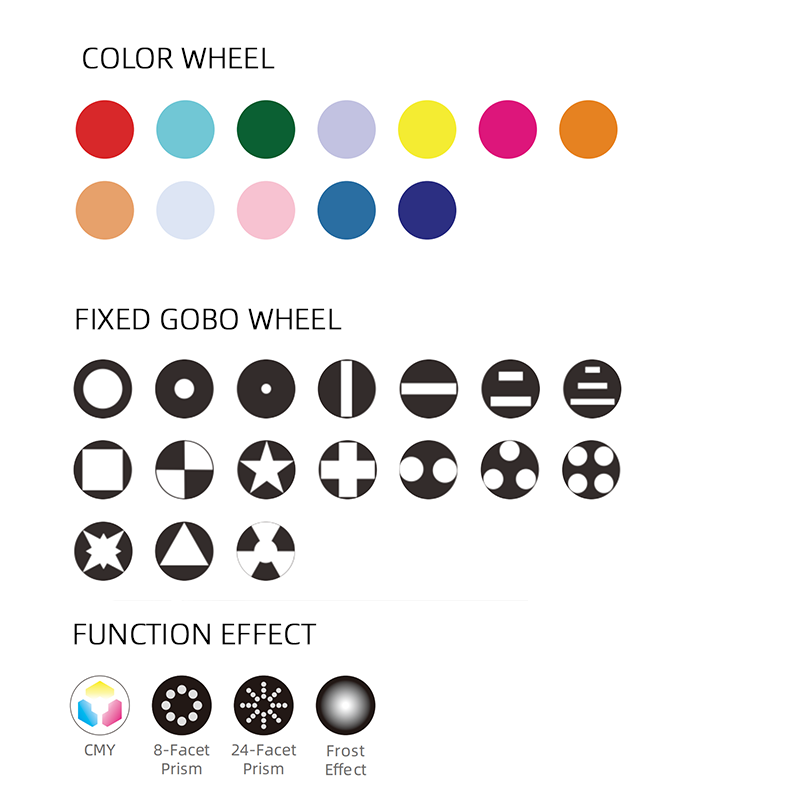

COLOR

Color Wheel: 12 Colors + blank, Bi-directional Rainbow Effect, bi-color step gradient (linear transition), and bi-directional color wheel rotation

CMY: Linear CMY Subtractive Mixing System

GOBO

17 gobos + blank, supporting flowing and shaking effects.

EFFECTS

Frost : Independent Frost Effect

Prism: 8 facet prism+24 facet prism, each independently selectable and bi-directionally rotatable, with support for prism overlay.

Dimmer : 0 to 100% linear dimmer

Focus : Motorized focus

CONTROL AND PROGRAMMING

Control Channels: 17CH, 19CH (see channel chart for details)

Protocols: DMX512, RDM, ARTNET, sACN

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT

Display: LCD screen

SOFTWARE

Software upgrade via DMX signal.

Intelligent temperature control to ensure the lifespan of the laser light source.

Noise level control: High brightness mode，Standard mode，Silent mode

PAN/TILT MOVEMENT

Pan axis: 540°, 8-bit/16-bit precision scan

Tilt axis: 270°, 8-bit/16-bit precision scan

Reset function with automatic error correction

Fixed lock: Tilt axis lock

POWER AND ELECTRICAL

Input voltage: AC 100-240V 50/60Hz

Maximum power: 233W

Power factor: 0.996

Maximum current of the fixture: 2.33A/100V; 1.05A/220V

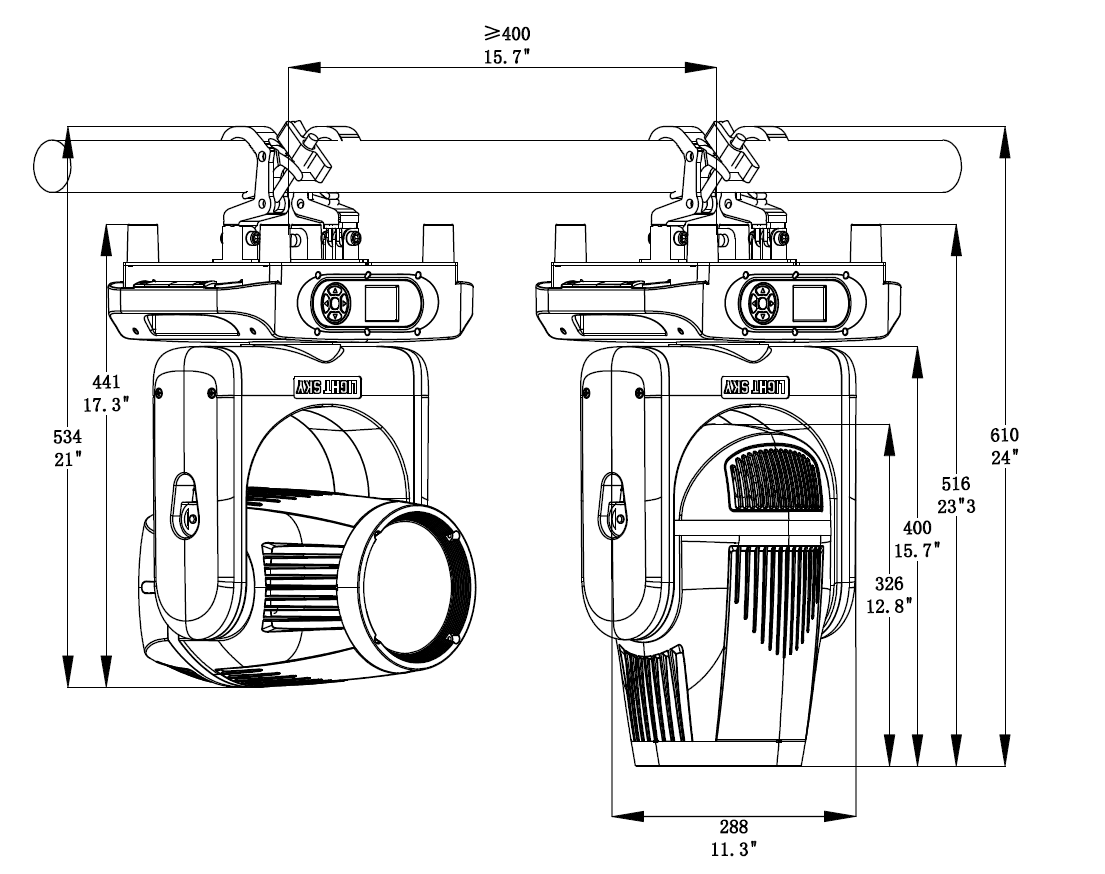

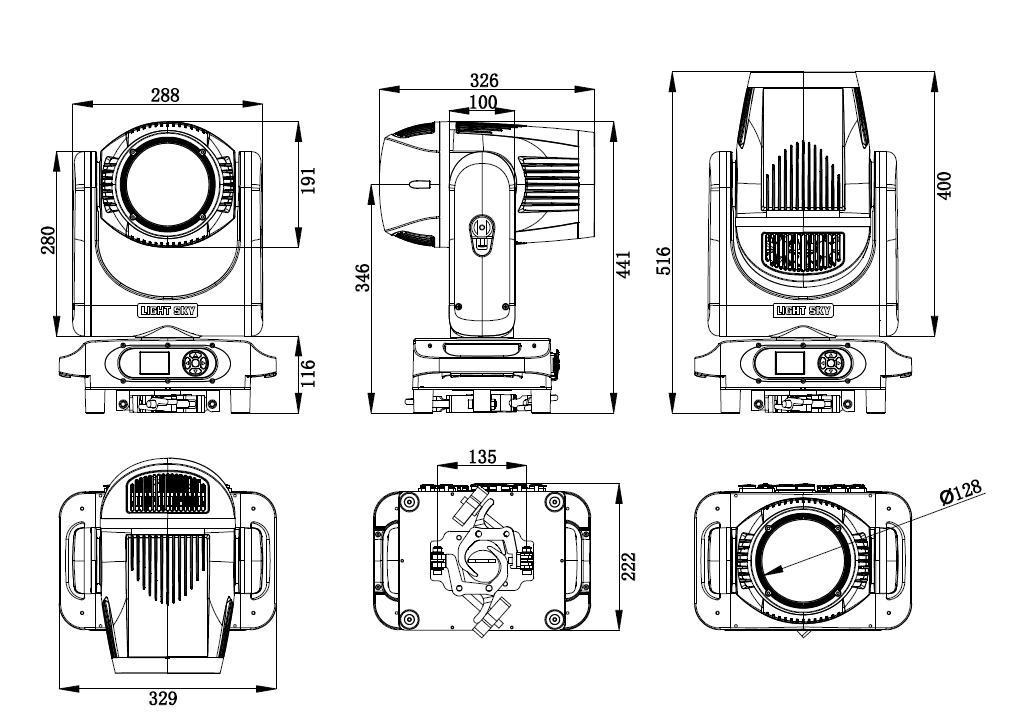

SIZE & WEIGHT

Product dimensions: 329×222×516mm

Net weight: 14.3 kg

Carton packaging: 405×295×650mm

Gross weight: 18.3 kg

OTHERS

IP Rate: IP66

Operating Environment: -20°C ~ 45°C

Maximum Surface Temperature: 65°C

FACTORY CONFIGURATION

Power Cable: 1 pc (Part No.: C1400050050)

Signal Cable: 1 pc (Part No.: F0200020087)

Safety Rope: 2 pcs (Part No.: F0200010002)

Lamp Hook: 1 set (Part No.: C0499990057)
