OPTICAL

Light source : 100W white laser
Light source average lifespan : 10000h
Beam angle : 1.1°
Front lens diameter : 128mm

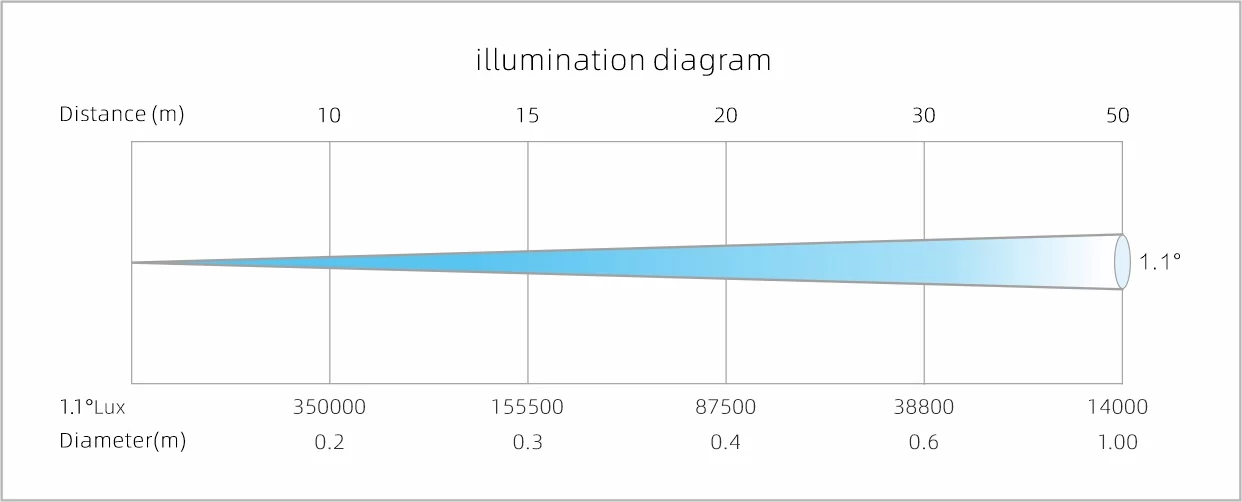

Luminance : 350000lux@10m

COLOR

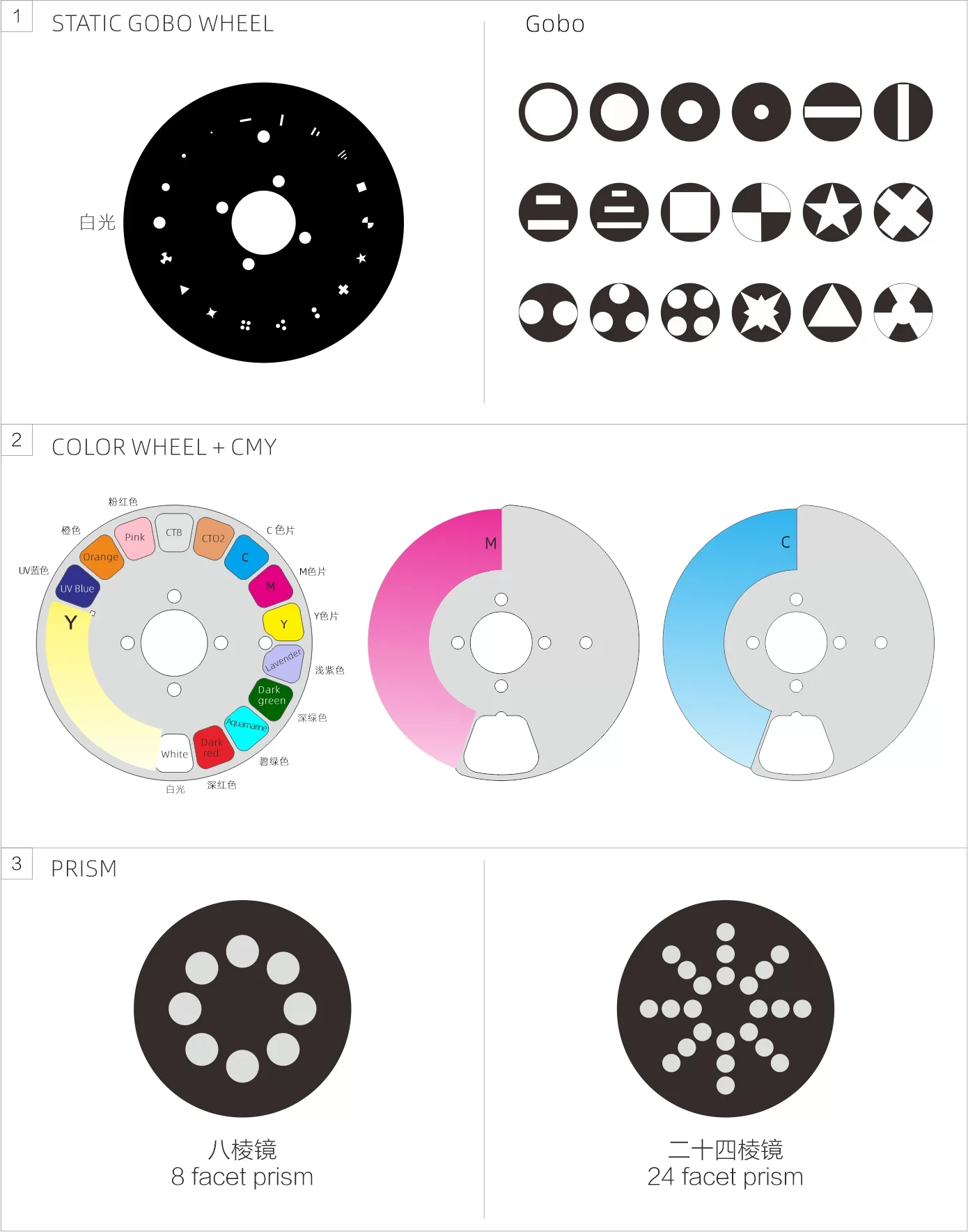

Color wheel : 12 color + 1Blank, Bi-direction rainbow effect
C M Y : Linear CMY colour mixing

EFFECTS

Static gobo wheel : 17 fixed gobo +1 Blank
Frost : Frost Effect
Prism: 8 facet prism+24 facet prism, Multiple prism combination
Dimmer : 0 to 100% linear dimmer
Strobe : Electronic pulse strobe and random strobe
Focus : Motorized focus

CONTROL

Channel mode : 17CH, 19CH, see channel table for details
Control protocol : DMX 512，RDM，ART-NET

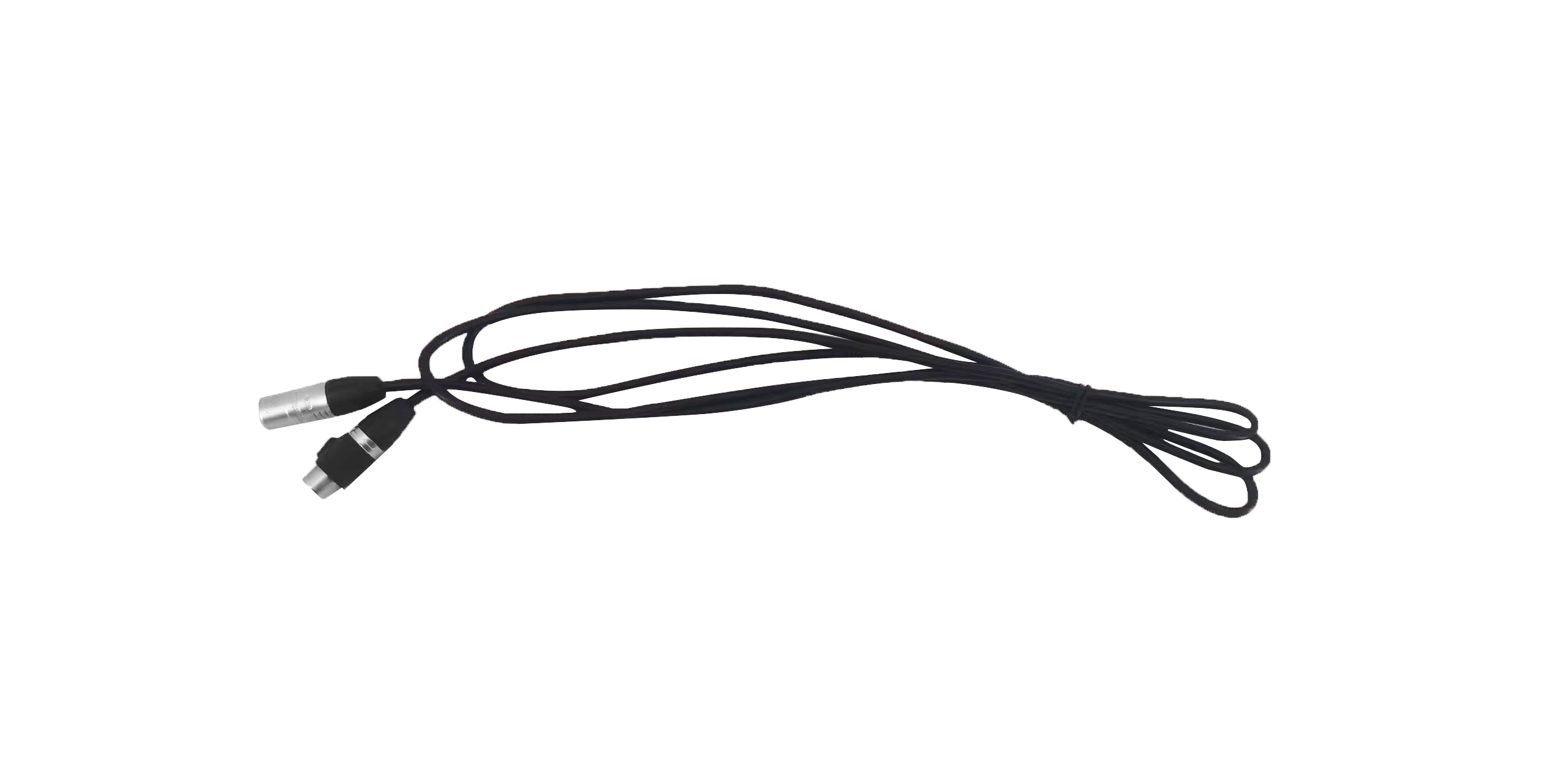

DMX and RDM connectors: Locking 3 pin or 5 pin XLR IN/OUT
Power connector: Seetronic one in one out

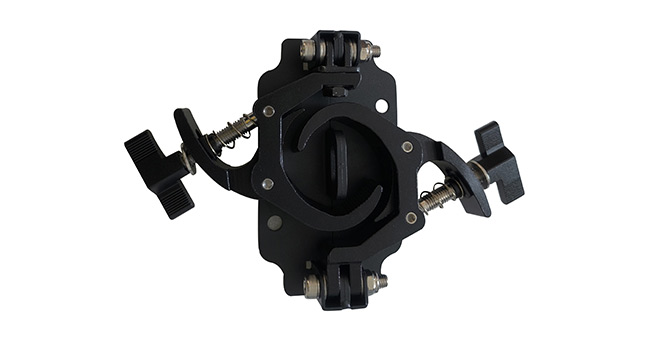

Hanging system ：foldable light hook
Display : LCD Lattice screen

SOFTWARE

Software upgrade via DMX signal.
Temperature control : Intelligent temperature control to ensure long lifespan of laser light source
Noise level control : High brightness mode，Standard mode，Silent mode

PAN/TILT MOVEMENT

Pan axis : 540°, 8-bit/16-bit precision scan
Tilt axis : 270°, 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock : Tilt axis lock

POWER

Voltage : AC 100-240V 50/60Hz
Power : 212W   PF:＞0.94

SIZE & WEIGHT

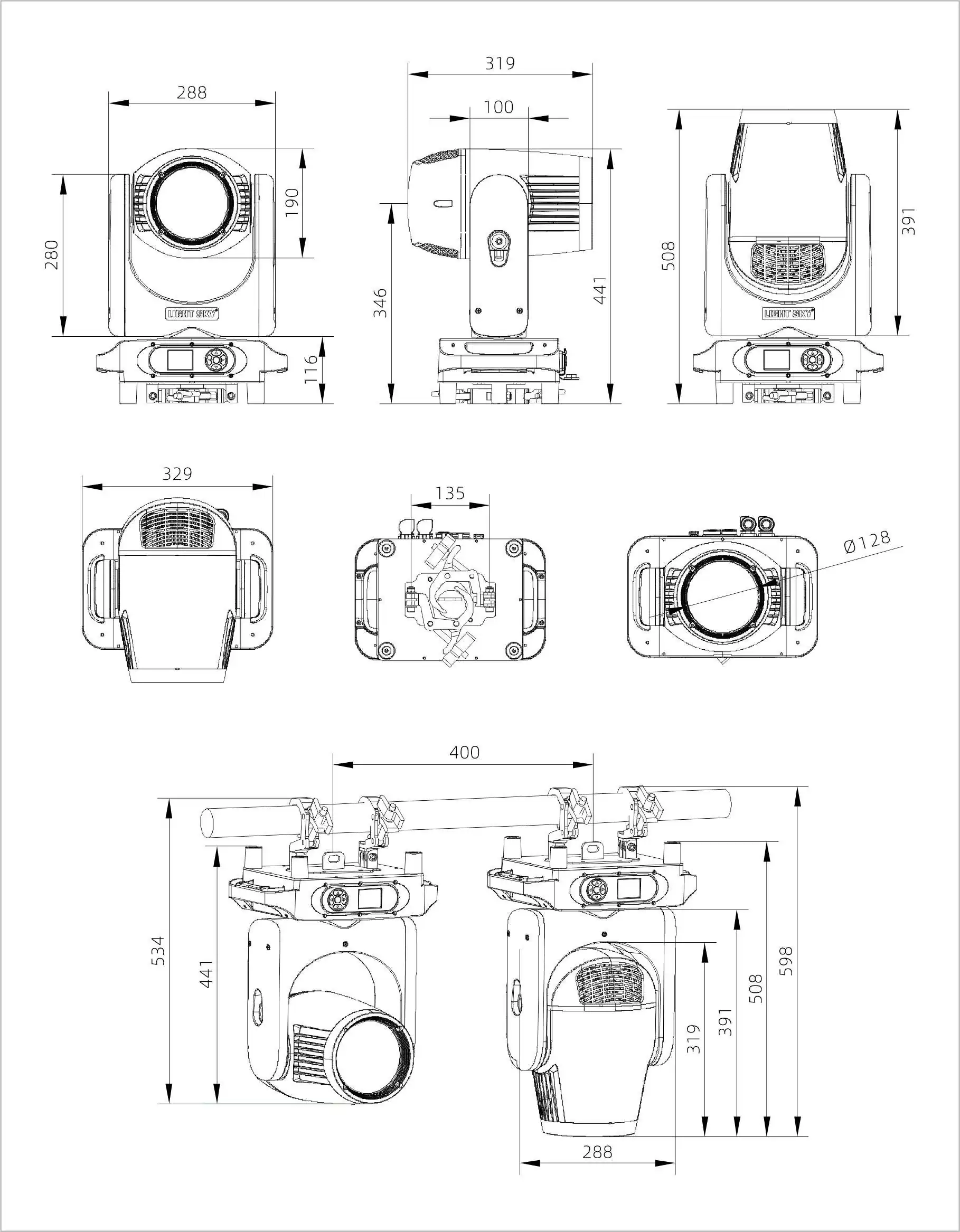

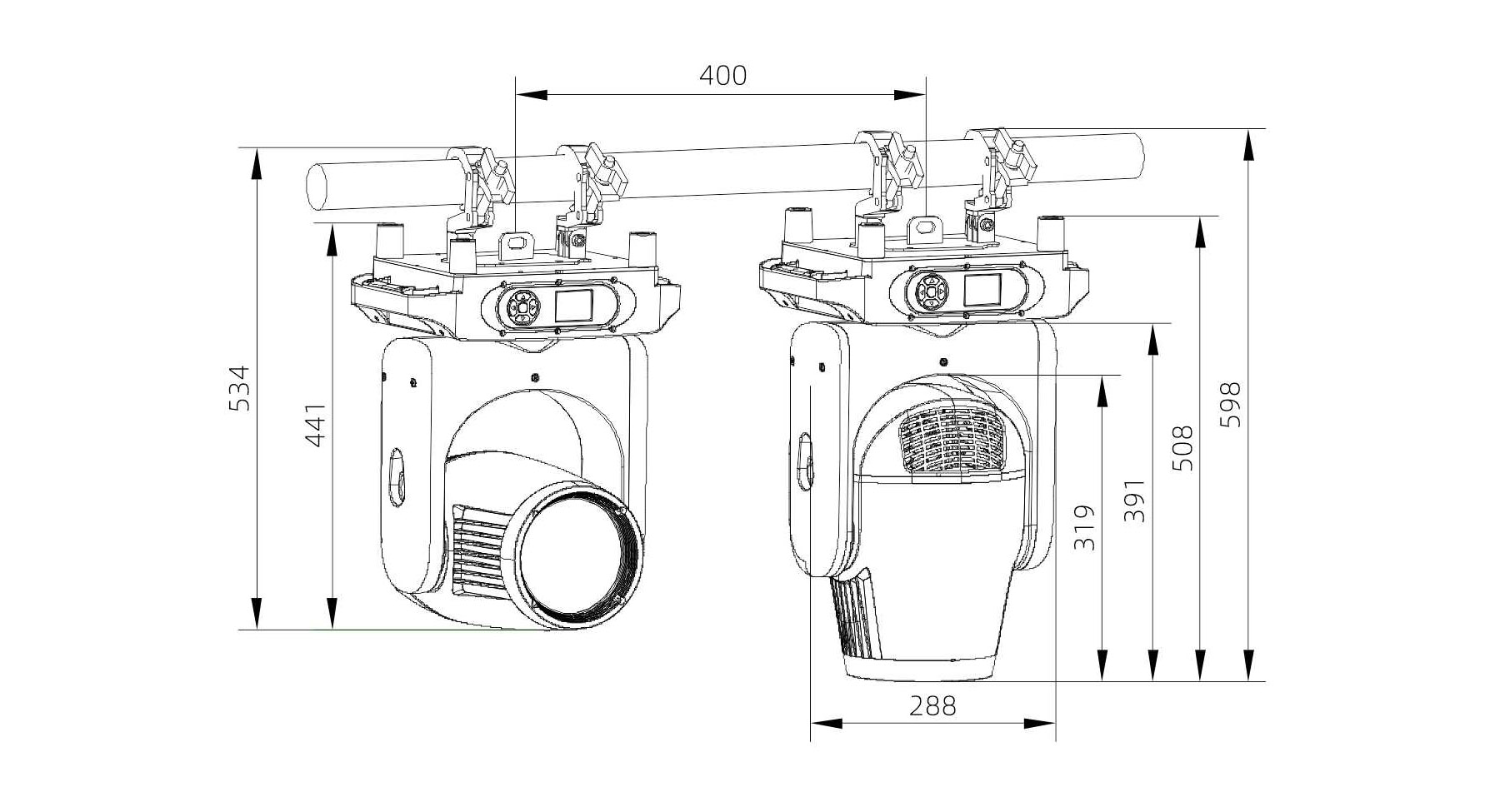

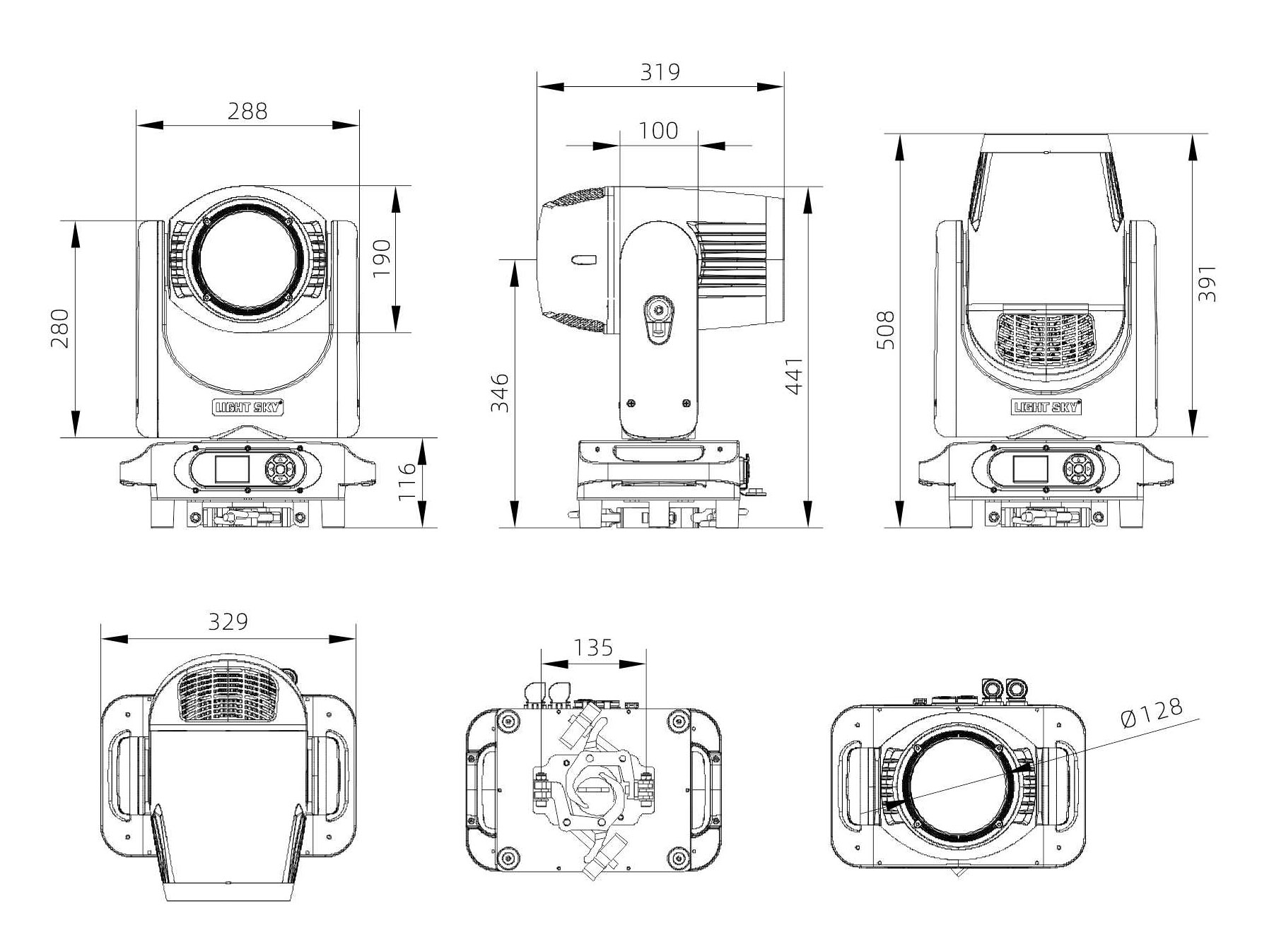

Light Dimension : 329 x 222 x 508mm
N.W : 13.7kg/pcs
Carton dimension : 410 x 290 x 625mm
G.W : 17.3kg/pcs

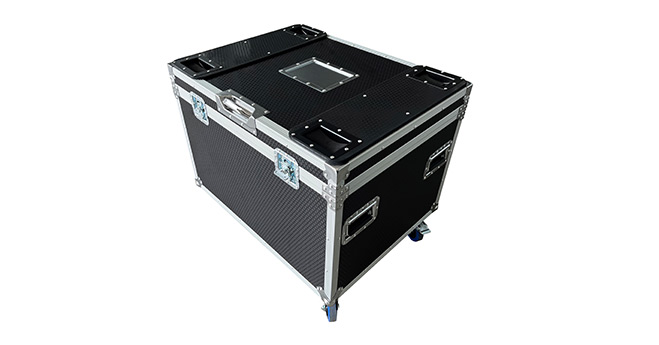

Flycase dimension : 850×660×725(mm)
G.W with fly case : 106 kg (4 in 1)

OTHERS

IP rate : IP66
Working environment : -20℃ ~ 45℃
Maximum temperature of fixture body surface : 80℃
Maximum on-line quantity : 4pcs/110V 8pcs/220V
Maximum current : 2.12A/100V； 0.94A/220V
