Description

Light Source / Power System

Voltage : AC100-240V 50/60Hz
Power : 485W
Power factor : 0.988
Rated current : 6A
Lamp : 450W(LIGHT SKY NSL-450 USHIO)
Lamp Power : 450W
Color Temperature : 6900k
Color Temperature Adjustment : 8000K-2500K rapidly change.
Lamp lifespan : 1500 hours



Color / GOBO / Effects

Color : colored paper by manual can be changed and mixed.
Gobo : A pluggable gobo module, can change the gobo rapidly.
Beam Cutting : Cutting in and out adjustment from vertical direction.
Frost : 7-21 liner adjustment.

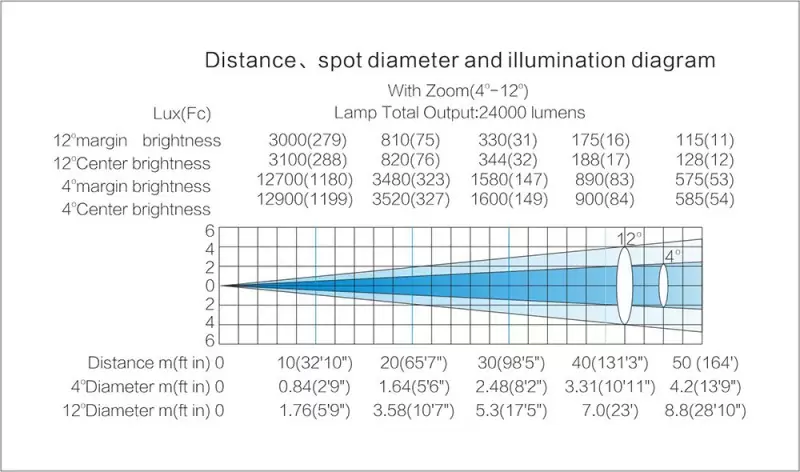

Beam angle : 4°-12° adjustment.



Control System

Iris : Simply and flexible Iris by manual, changing the beam light at random.
Manual Dimmer : 0-100% liner adjustment
Pan/Tilt : Pan 360°, Tilt : 90°



Other functions

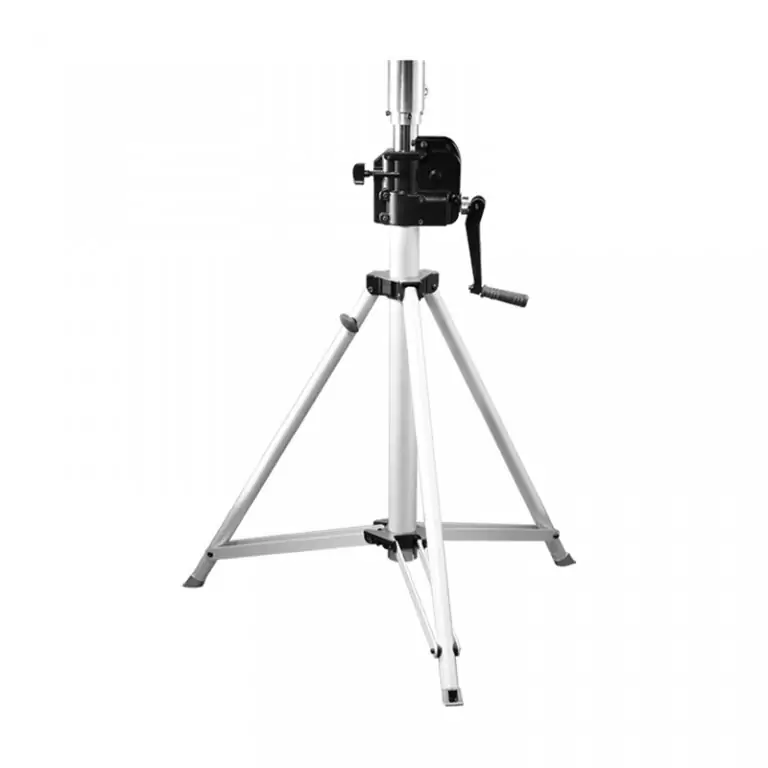

Light Stand : Weight 9.18kgs, can rotate at 360° and adjust the height.



Appearance Parameters

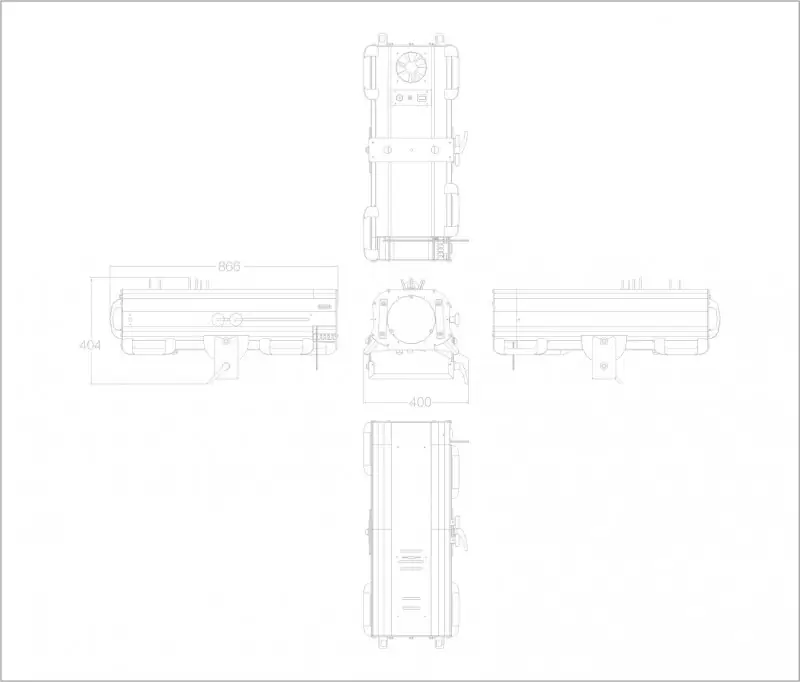

Light size : (L x W x H)866 X 400 X 404 (mm)
Fly case size (with Stand) : (L x W x H) 1225 X 625 X 545 (mm)
N.W : 22.5Kg
G.W : 73Kg
Carton size (without Stand): (L x W x H) 978 X 512 X 475 (mm)
N.W : 22.5Kg
G.W : 26Kg



LIGHT SKY CAD DRAWINGS









Attention : All downloaded light library files on this site need to be decompressed before they can be used.
