Light Source / Power System

Voltage : AC100~240V 50/60Hz
Power : 450W
Color Temperature : 7500K
Lamp : OSRAM SIRIUS HRI 330W XL
Lamp Lifespan : 1500H

Color / GOBO / Effects

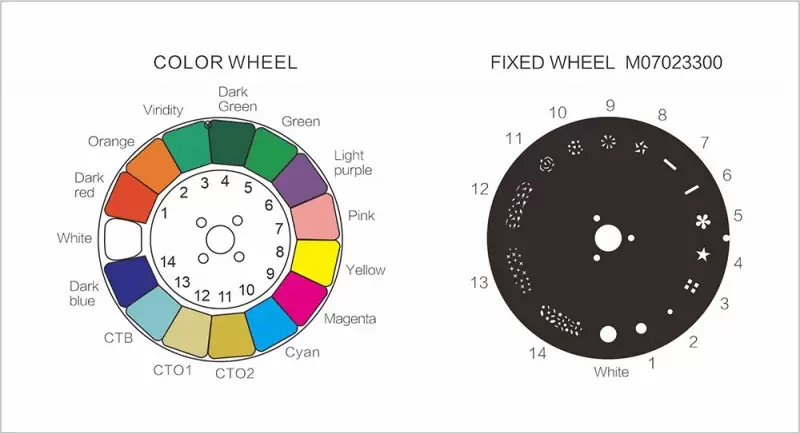

Color Wheel : 1 white color+14 color wheel
Fixed Gobo Wheel : 1blank gobo+11gobo+3animation range
Prism : 8 prism+16 double prism +prism combination

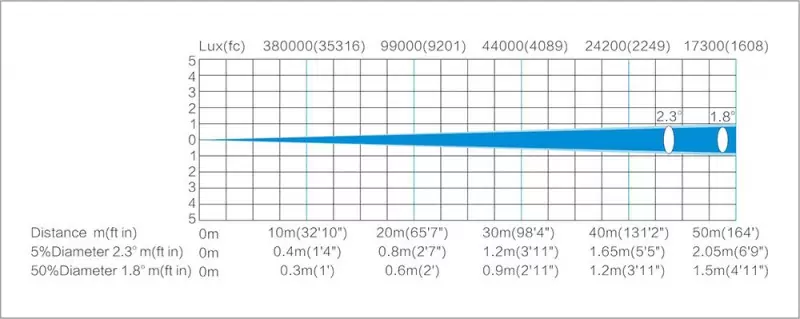

Beam angle : 2.3°
Strobe : double strobe structure,0.5-9 times/second(adjustable)

Control System

Control Mode : DMX512、RDM
Channel : 14CH/16CH/16PLUS

Other functions

IP set : Automatic chang battery,IP could be set without electricity.
Software upgrade : Insert USB upgrade software.
Features : Remote control lamp’s swith function display light and lamp’s using time.
automaticallay adjust cooling-fan’s speed,Drop power when strobe lens.
Safety Devices : 1、BIPOlar circuit breaker with thermal protection.
2、Automatic break in power supply in case of overheating or failed operation of cooling system.
Cooling : Forced ventilation with axial fans
The vertical direction : The vertical direction of the use of hidden locking device,
convenient transportation and maintenance.

Appearance Parameters

IP rate : IP20 protection

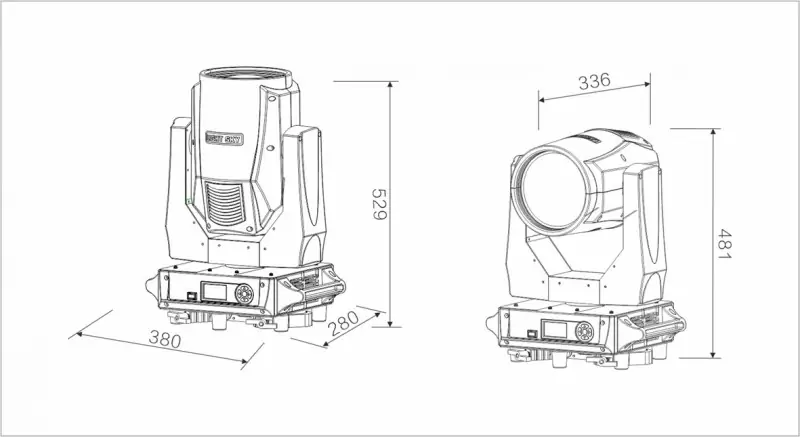

Size : （LxWxH）380x280x529（mm）
Carton size : （LxWxH）400x345x570（mm）
N.W : 18.8Kg/pcs
G.W : 21.2Kg/pcs
Flightcase size(2pcs) : （LxWxH）865x470x740（mm）
N.W(2PCS) : 37.6Kg
G.W(2PCS) : 71.8Kg
Accessory : clamp, DMX cable ,AC Power cable,Neutrick
power con（white），safety rope,singal cable, service card,
instruction manual
