Light Source / Power System

Voltage : AC100-240V 50/60Hz
Power : 360W
Power Factor : PF 0.986
Lamp Brand : NEOLUX®STAGE 260W
Lamp Power : 260W
Color Temperature : 7800K
Average Lifespan : 2500h
Lumen : 10000LM
Focus and Lens : High precision optical lens

Color / GOBO / Effects

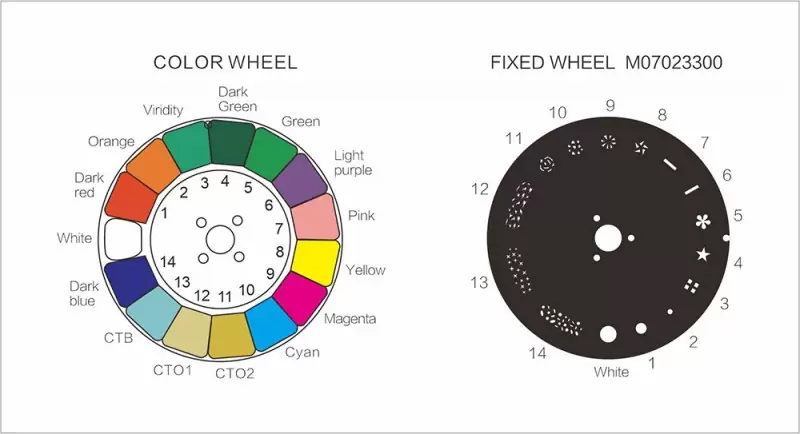

Color : 14 colors +white
Gobo : φ106 11Gobo + 1 white + 3 animation range
Strobe : Double lens strobe(0.5-12 times/second)
Dimmer : 0-100％ linear adjustment

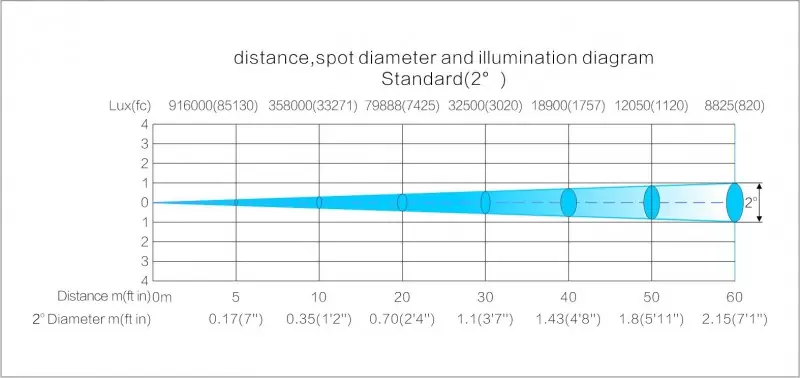

Beam Angle : 2°
Prism : 8 Prism+16 double Prism+multi combination effect

Control System

Control Mode : DMX512
Channel : 16CH / 14CH / 16CH PLUS
Motors : 12 ultra-quiet motors
X/Y Travel : 540°/270° X/Y Resolution : 2.11°/0.98°
X/Y Speed : 2.7S/1.6S
Wash effect : Adjustable wash effect angle

Other functions

IP set : Automatic chang battery,IP could be set without electricity.
Software upgrade : Insert USB upgrade software.
Features : Remote control lamp’s swith function display light and lamp’s using time.
automaticallay adjust cooling-fan’s speed,Drop power when strobe lens.
Safety Devices : 1、BIPOlar circuit breaker with thermal protection.
                           2、Automatic break in power supply in case of overheating or failed operation of cooling system.
Cooling : Forced ventilation with axial fans
The vertical direction : The vertical direction of the use of hidden locking device,
convenient transportation and maintenance.

Appearance Parameters

IP Rate : IP20
Structure : Heat-proof plastic+module pressing alloy materials.
The vertical direction of the use of hidden locking
device,convenient transportation and maintenance.

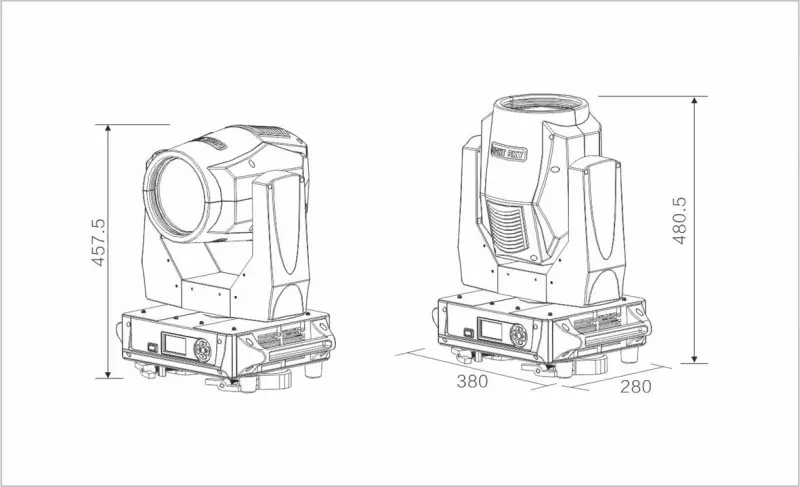

Light Size : 380X280X480.5mm
Carton Size : 400X345X570mm
N.W : 17.8Kg        G.W : 20.3Kg
Flycase Size : 885X490X740mm (2pcs in 1)
N.W : 35.6Kg        G.W : 69.8Kg
