Light Source / Power System

Voltage : AC100~240V 50/60Hz
Rated Power : 620W
Lamp power : 470W
Average lifespan : 1500h
Ballast : Electronic Ballast
Color temperature (lamp) : 7500K
Color temperature(Light Output) : 6300K
Focus and Lens : φ160 Optical lens with high precision,linear electronic focus.
Strobe : Double strobe(0.5~9 times/second).
Dimmer : 0-100% linear adjustment.


Color / GOBO / Effects

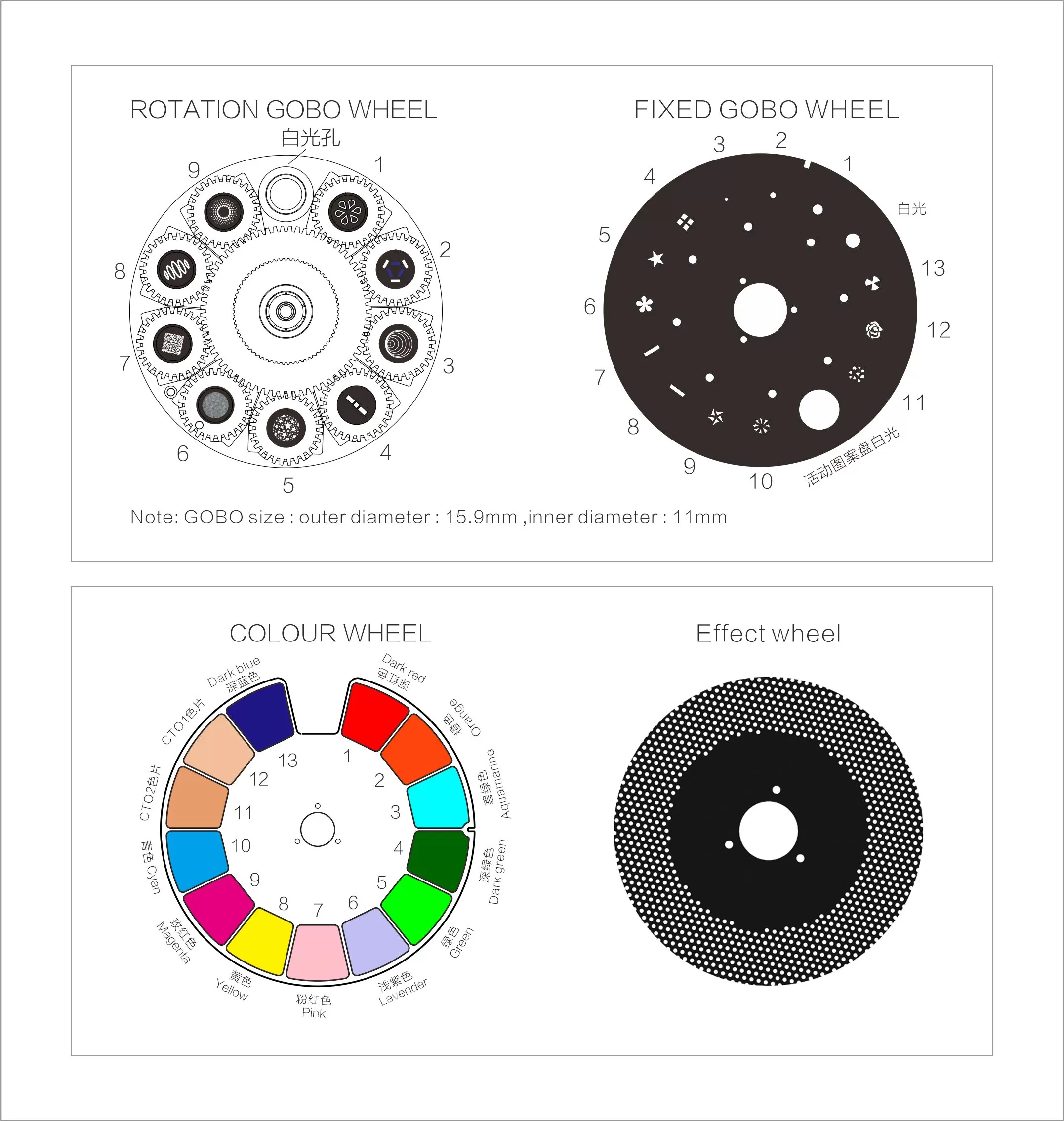

Color : 13 colors + white, bidirectional rainbow effect
Fixed Gobo Wheel : 14 fixed gobos + white, including bidirectional effect of vibration, running water and animation
Rotation Gobo Wheel : 9 rotating Gobos + white, including bidirectional effect of vibration, running water and animation
Effect wheel : bidirectional rotation and dynamic effect
Prism : 4pcs prism(3+1 Double prism wheel) & Multiple prism combinations

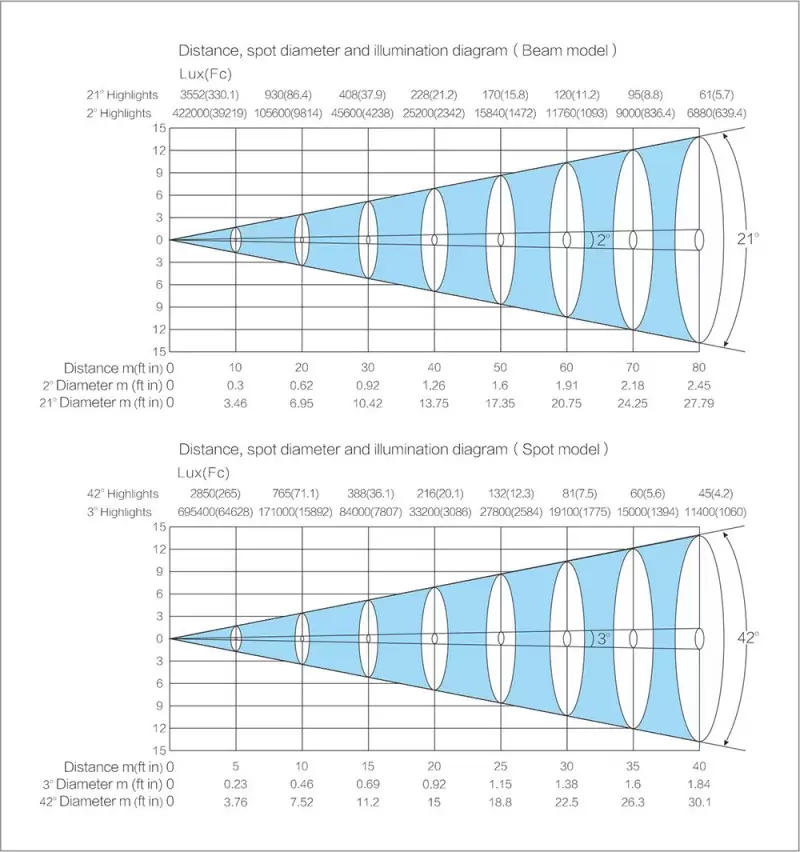

Beam angle : Beam Projection 2°~21°,Spot Projection 3°~42°
Frost : Two-level frost (1 ° and 5 °) and frost combined


Control System

Control mode : DMX512、RDM
Channel : 28CH(standard)
Motors : 23 ultra-quiet motors
Pan/ Tilt : 540°/250°
Pan/ Tilt fine : 2.11°/0.98°
Pan/ Tilt Speed : 2.7 S/1.6 S
Software upgrade : Via USB


Other functions

Other functions : 1、The lamp’s switch can be controlled remotely; the cooling fan can be adjustable automatically; the lamp power will decrease when the fixture turns off.
2、DMX address can be reset remotely via control panel
3、The lamp’s heat dissipation can be adjustable with G-sensor system
Lamp safety : overcurrent and overheat protection; automatically interrupts lamp power when the lamp overheats or the cooling system fails.
Cooling System : Forced ventilation with an axial-flow fan
vertical direction : The locking device of vertical arm is used for convenient transportation and maintenance.


Appearance Parameters

Cover material : Heat-proof plastic + module pressing alloy materials.
IP rating : IP20

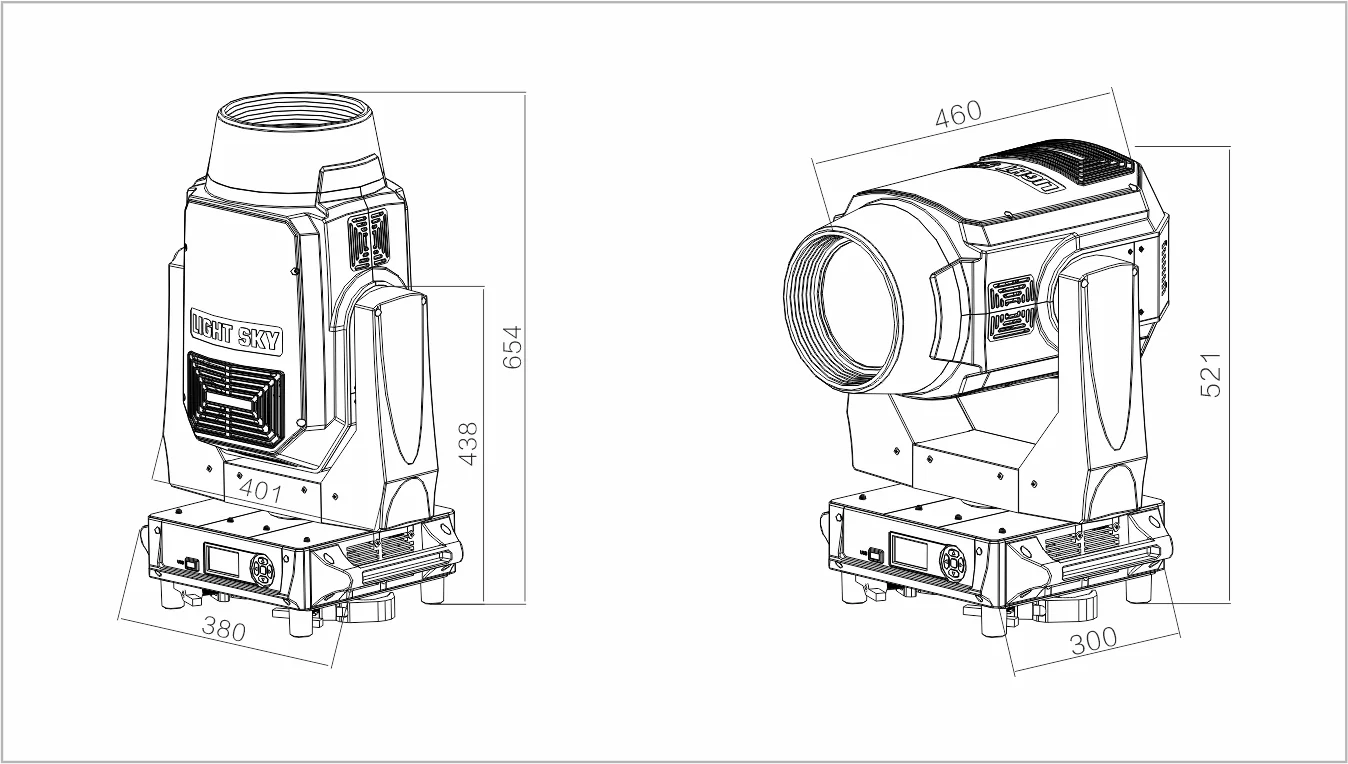

Fixture size : 380x300x654(mm)
A single Carton Size : 490X390X725(mm)
N.W : 29.0kg           G.W : 32.50kg
Flight case Size (2pcs in 1) : 890X500X850(mm)
N.W : 58.00kg         G.W : 101.00kg






Attention : All downloaded light library files on this site need to be decompressed before they can be used.
