Description

OPTICAL

Light Source : USHIO NSL U8 lamp , 520W
Fixture Angle : Beam mode 1.8°-24°, Spot mode 3°-45°, Wash mode 2.6°-43°
Optical Lens : Diameter 160mm
Color Temperature : 7000K
Total Lumen Output : 16,000 Lm
Color Rendering Index (CRI) : Ra≥80 (with filter Ra≥88)
Illuminance : 620,000 @10 meters
Light source lifespan : 4000 hours





COLOR

CMY : Linear CMY color mixing system
CTO : Linear CTO
Color : 14 color filters + white, capable of bi-directional rainbow effect,bi-color step gradient (linear movement), color wheel bi-directional rotation,and random color mode





GOBO

1 static gobo wheel : 13 gobos + white, capable of flowing and shaking effects
1 rotating gobo wheel : 9 glass gobos + white, replaceable, capable of rotation,flowing, and shaking effects, gobo outer diameter 14.0mm,gobo inner diameter 9.5mm
Dynamic effect wheel





EFFECTS

5-Prism System: Our LED moving head spot light combines 2 beam prisms and 3 spot prisms with bidirectional rotation, independent switching, and stackable effects for dynamic layering.
2 Frost Filters: Independently adjustable for seamless soft light diffusion, from subtle haze to full wash.
Precision Focus: High-resolution electronic focus of our LED moving head spot ensures razor-sharp or smoothly blended beams.
Versatile Strobe: Adjustable pulse (0.5–12Hz) and random strobe for high-impact rhythmic or chaotic effects.
Smooth Dimming: 0–100% linear dimming with flawless fade transitions for total light control.





CONTROL

Control Channels : 33CH,35CH
Protocol : DMX512, RDM , ArtNet
Data Connection : 3-pin or 5-pin signal IN/OUT
Display : LCD screen





SOFTWARE

Software Upgrade : DMX interface or USB interface (optional)





PAN/TILT MOVMENT

Pan axis : 540° 8-bit/16-bit precision scan
Tilt axis : 270° 8-bit/16-bit precision scan
Reset function with automatic error correction
Fixed lock : Tilt axis lock





POWER

Input Voltage : AC 100-240V 50/60Hz
Maximum Power : 700W
Power Factor : 0.98





SIZE & WEIGHT

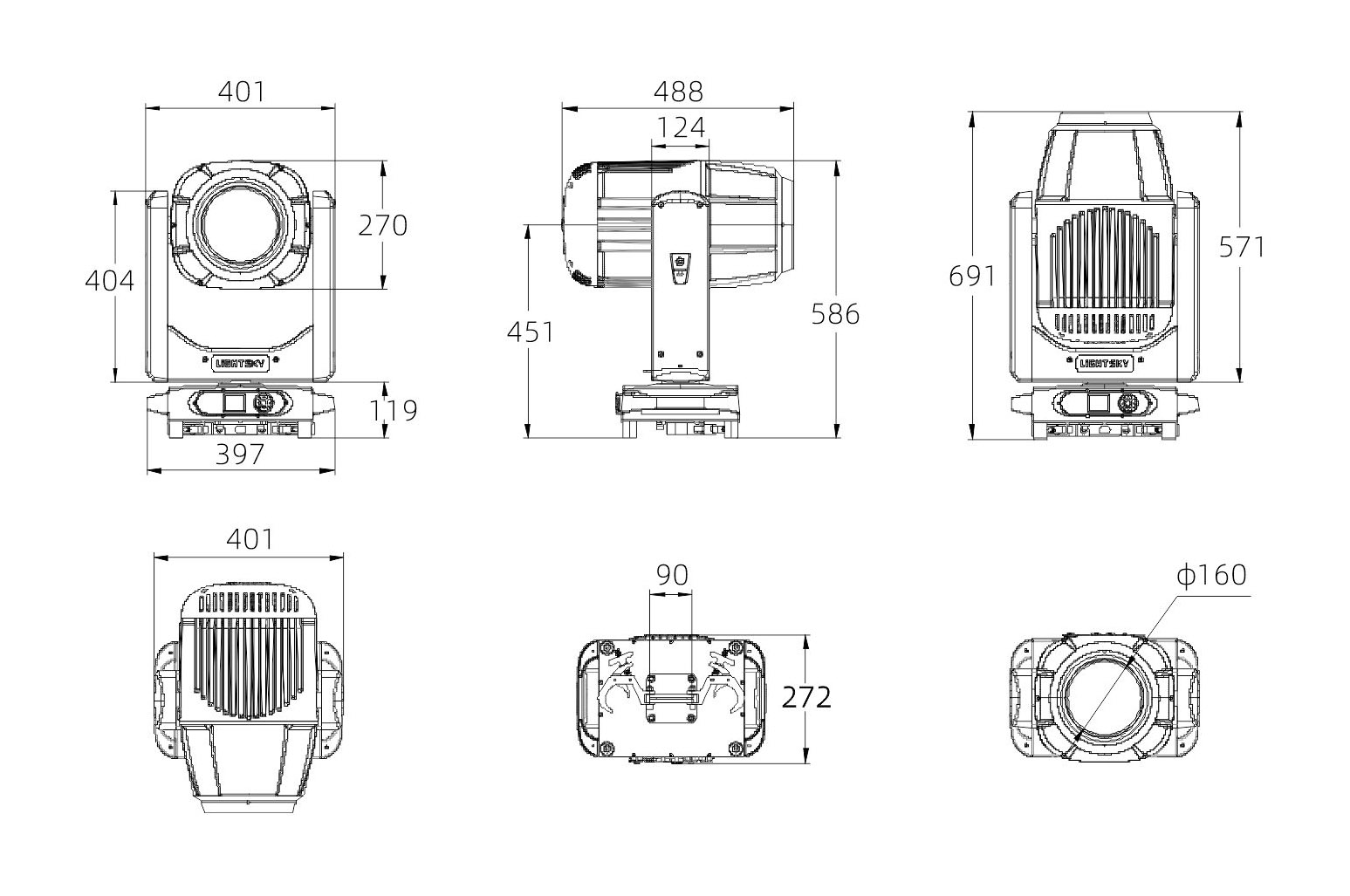

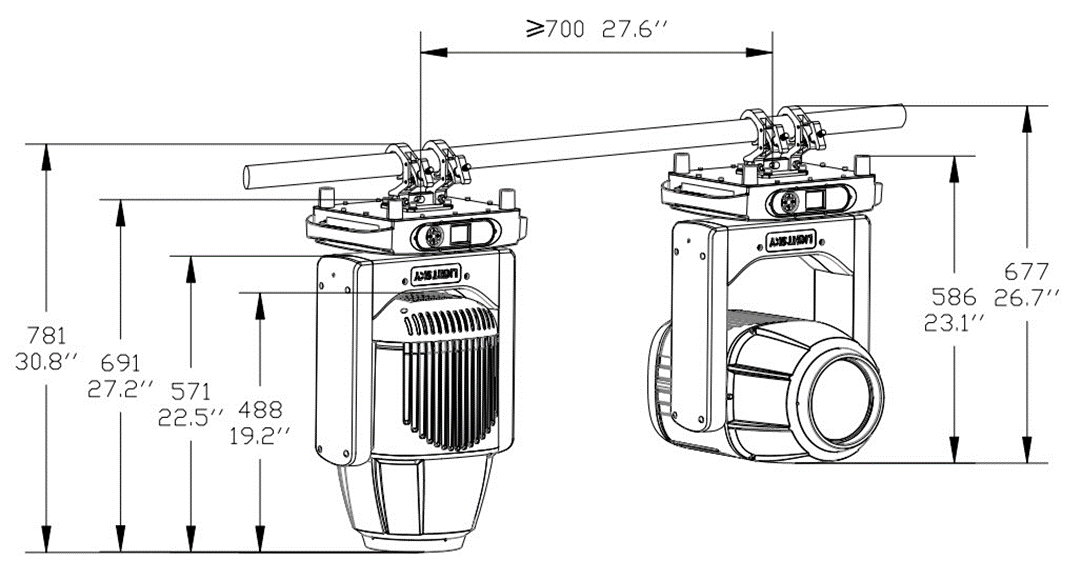

Product Dimensions : 401×272×691(mm)
Net Weight : 31.1 kg
Carton Packaging (Default) : 515×360×825(mm)
Gross Weight : 36.6 kg





OTHERS

IP Rate : IP66
Operating Environment : -20℃ ~ 45℃
Maximum Surface Temperature of Fixture : 80℃
Maximum Current of Fixture : 3.18A/220V, 7A/100V

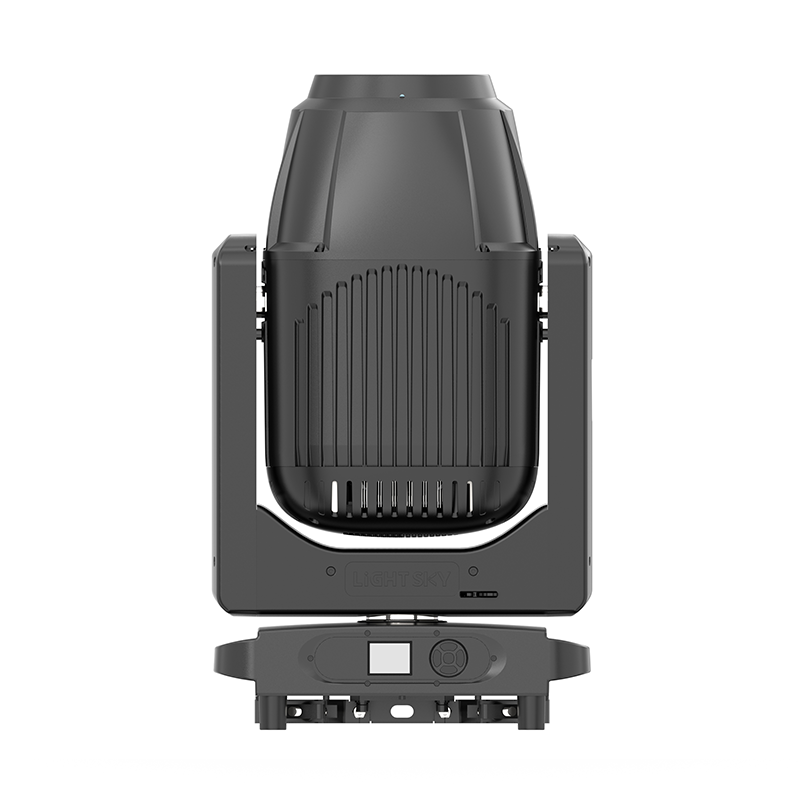

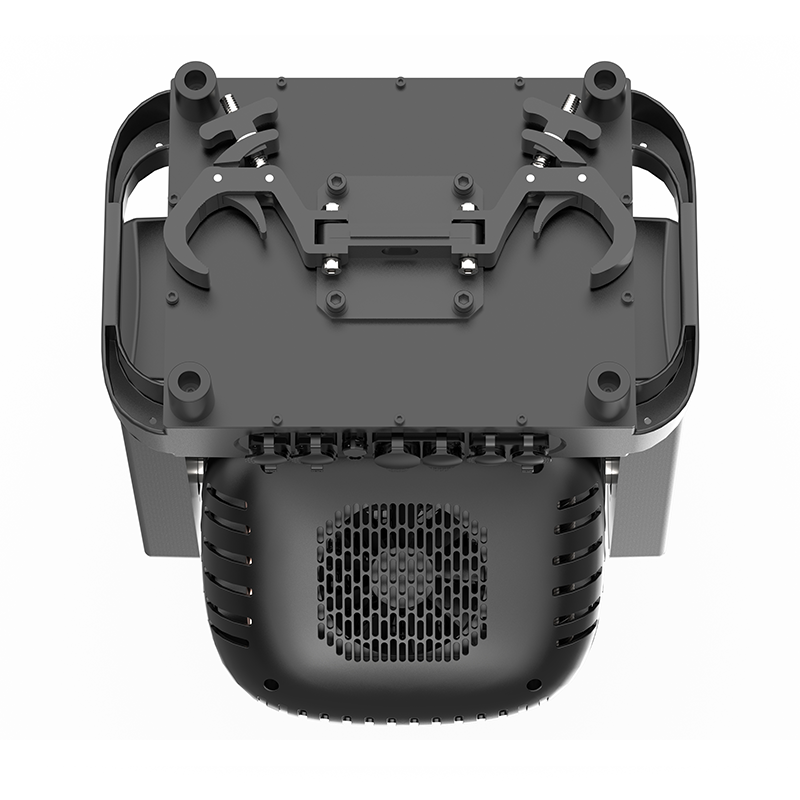

LIGHT SKY AURORA AQUA
