Description

OPTICAL

Light source : 12pcs * 40W RGBW 4 in 1 LED
Beam angle : 3.6°to 40°
Zoom angle : 5°to 50°
Light color temperature range : 2500K to 10000K

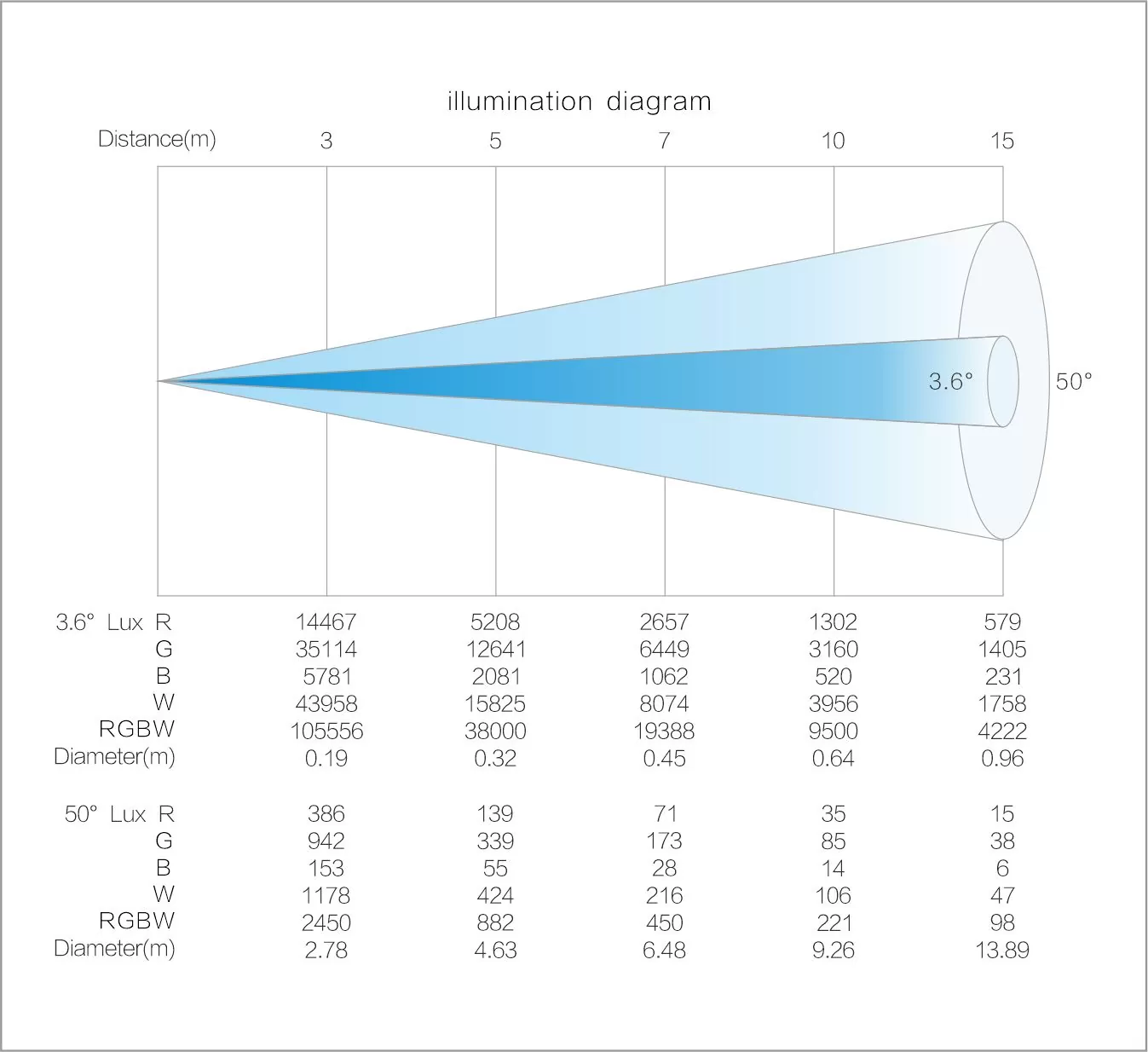

Luminance : 38000lux@ 5m
Total lumen output : 7100LM
Light source average life span : 20000H





COLOR

Color mixing : RGBW color mixing system, can make rainbow effect





EFFECTS

Zoom system : Linear electric zoom
Individual LED control : Individual LED control, outstanding effect
Front ring AURA : The front ring AURA’s LED chip can be controlled individually, can make flow color effect
Effect macro : Static effect macro function and dynamic effect macro function
Dimmer : Electronic dimmer, provides four dimming options
Strobe : 1-30Hz electronic strobe and random strobe





CONTROL

Channel mode : 28CH,40CH,72CH,35CH
Control protocol : DMX512、RDM、ARTNET、sACN
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Display : LCD display screen. With Chinese and English two version language.





SOFTWARE

Software upgrade : Upgrade via DMX connector or USB
Temperature control : Intelligent temperature control to ensure LED life





X/Y ANGLE OF MOTION

Pan/Tilt : 540°/270° 8bit/16bit
Reset function with automatic error correction
Fixed lock : Tilt axis lock





POWER

Voltage : AC 100-240V 50/60Hz
Power : 560W  PF 0.996
Maximum current : 2.43A/220V; 5.0A/110V





SIZE & WEIGHT

Light dimension : 397×280×539(mm)
N.W : 21.1 kg/pcs
Carton dimension : 470×350×670(mm)
G.W : 25.3kg/pcs
Flycase dimension : 720×520×745mm
G.W with fly case : 81.0kg (2 in 1)





OTHERS

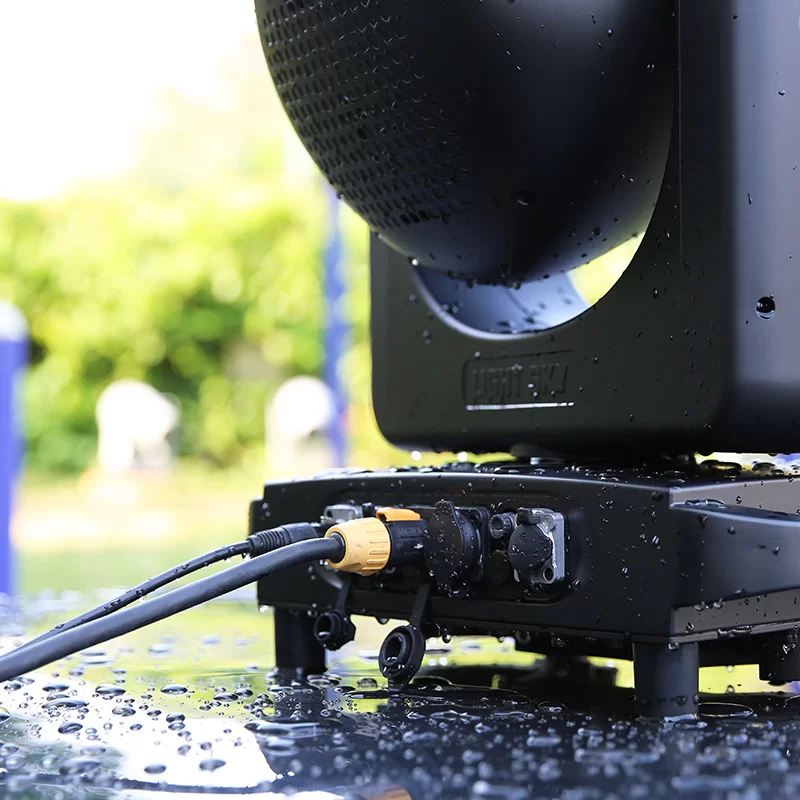

IP rate : IP66
Working environment : -20℃ to 45℃
Maximum temperature of light body surface : 55℃





APPROVALS

The product implementation standard : GB 7000.1-2015 GB7000. 217-2008
Approved certifications : CE、RoHS
The product complies with the following EU directives:
Low Voltage Directive 2014/35/EU . EMC Directive 2014/30/EU

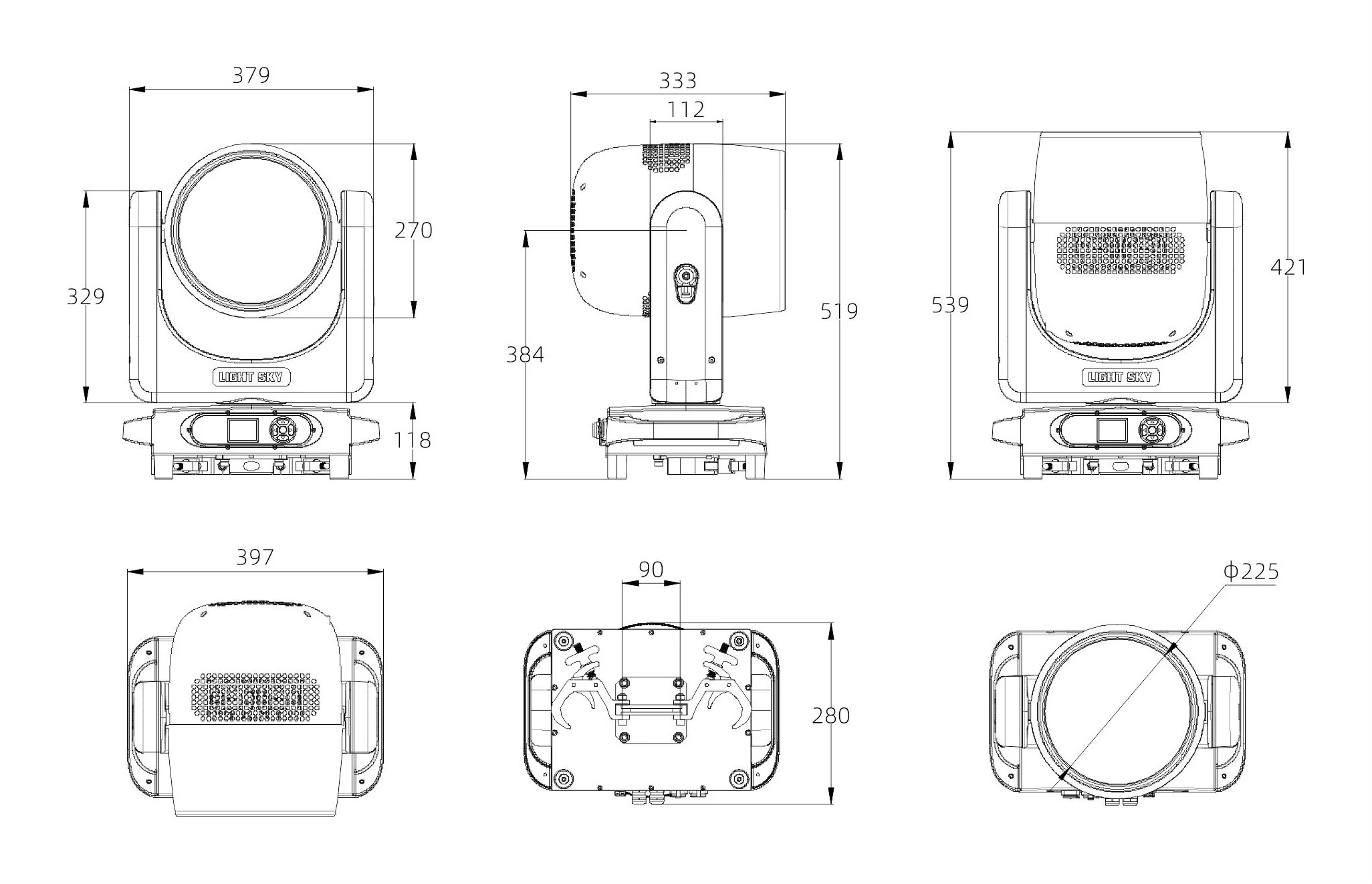

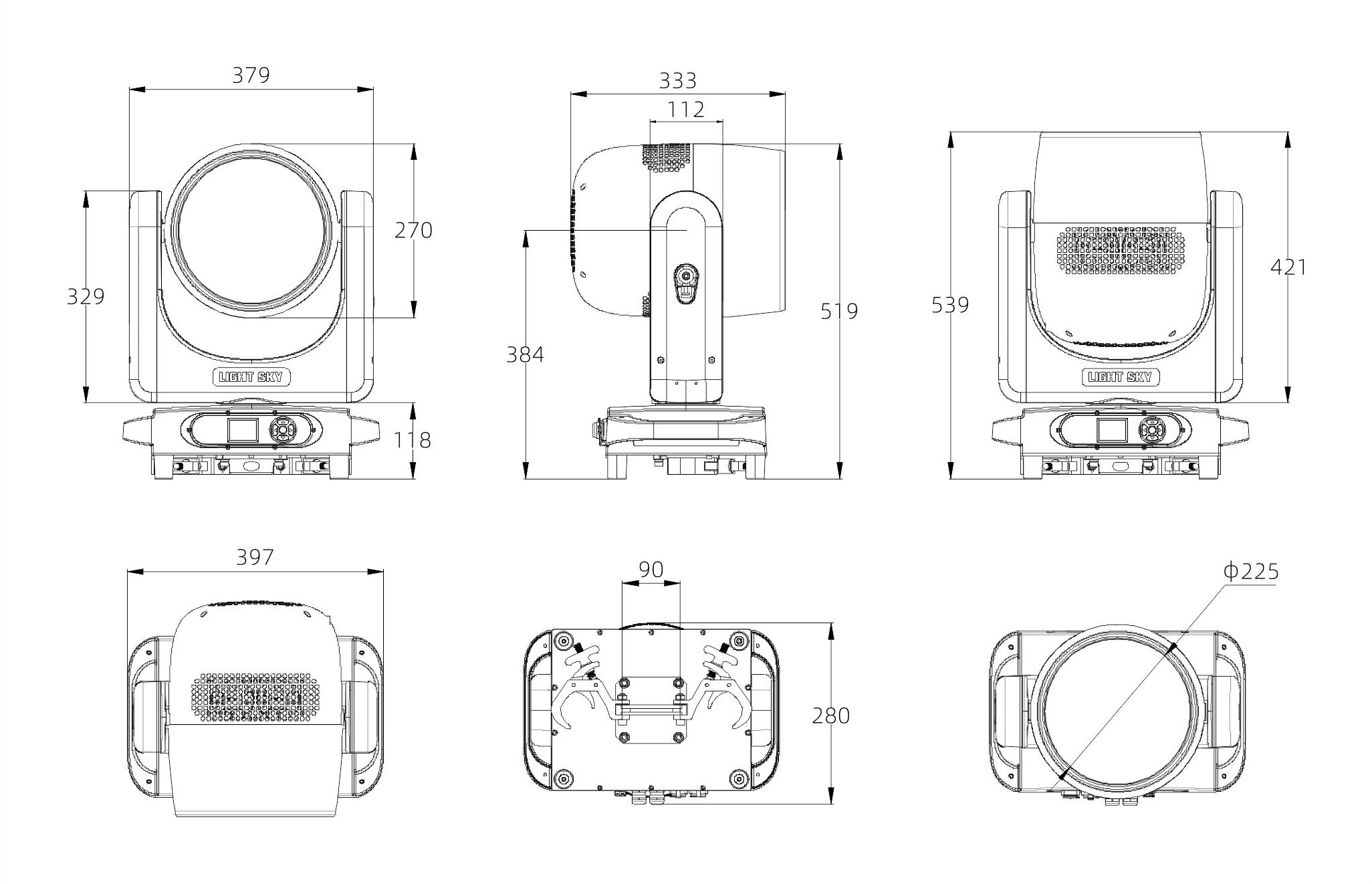

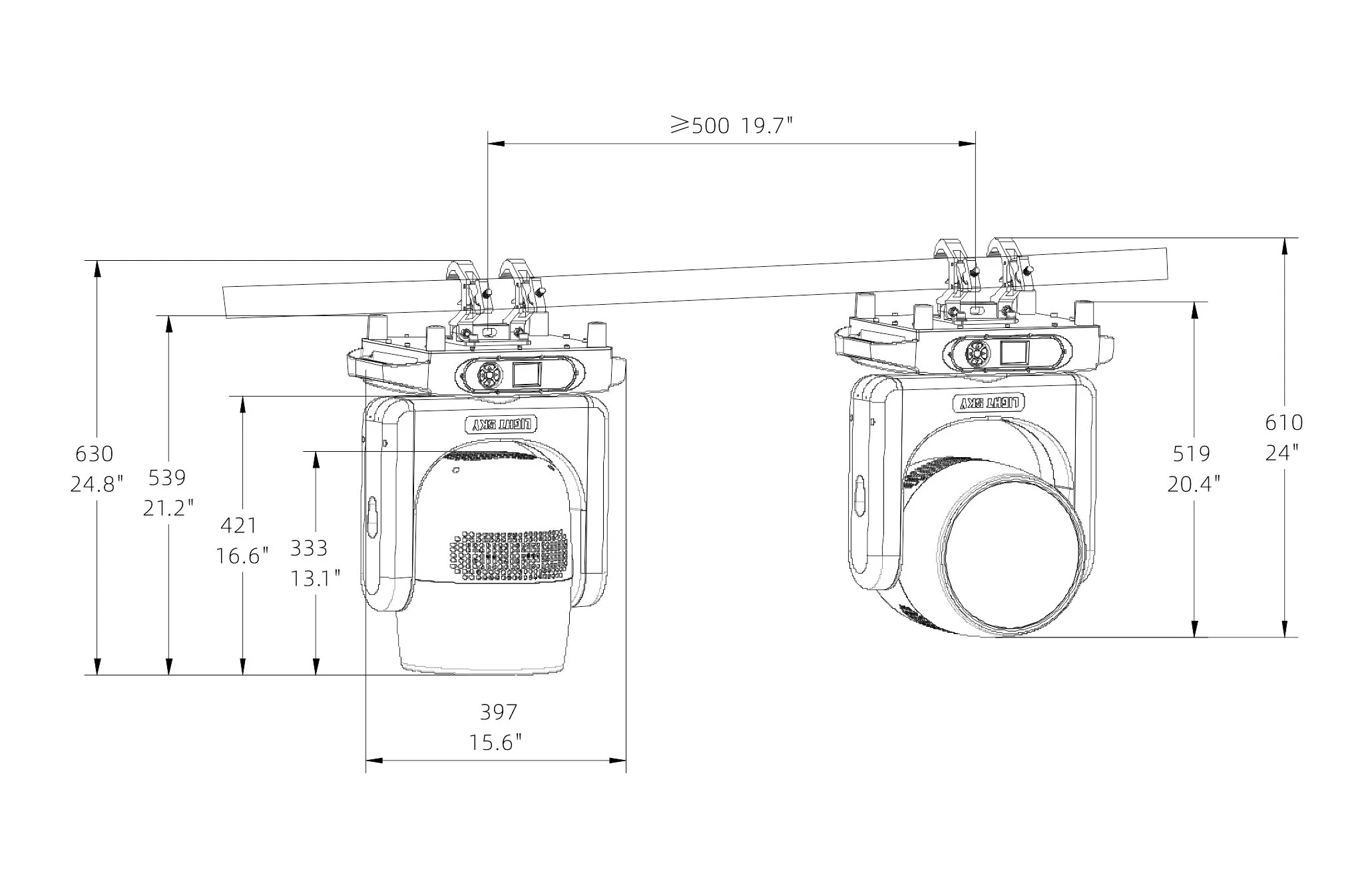

Dimension drawing

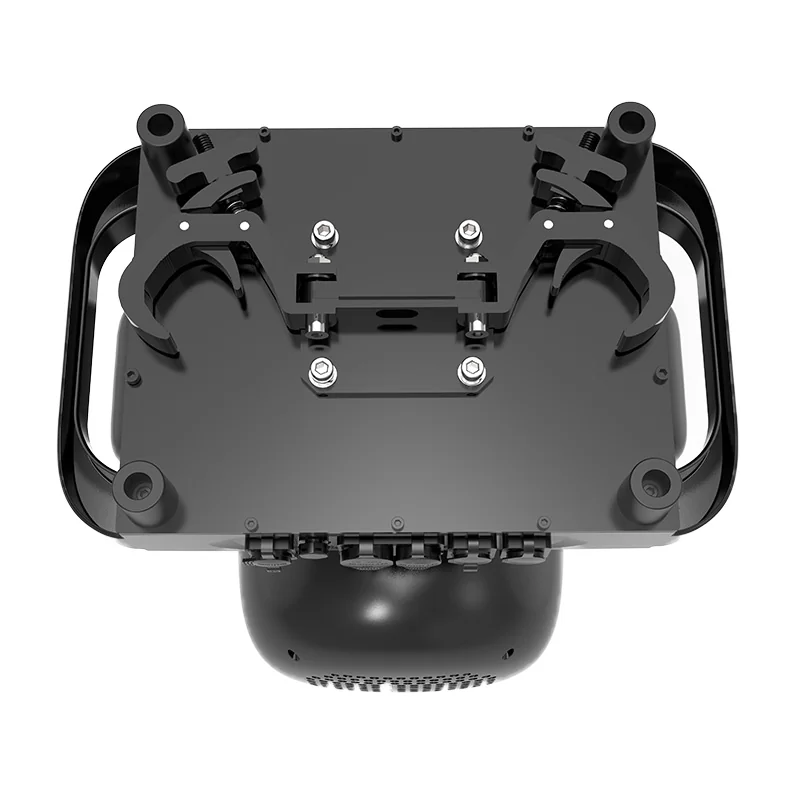

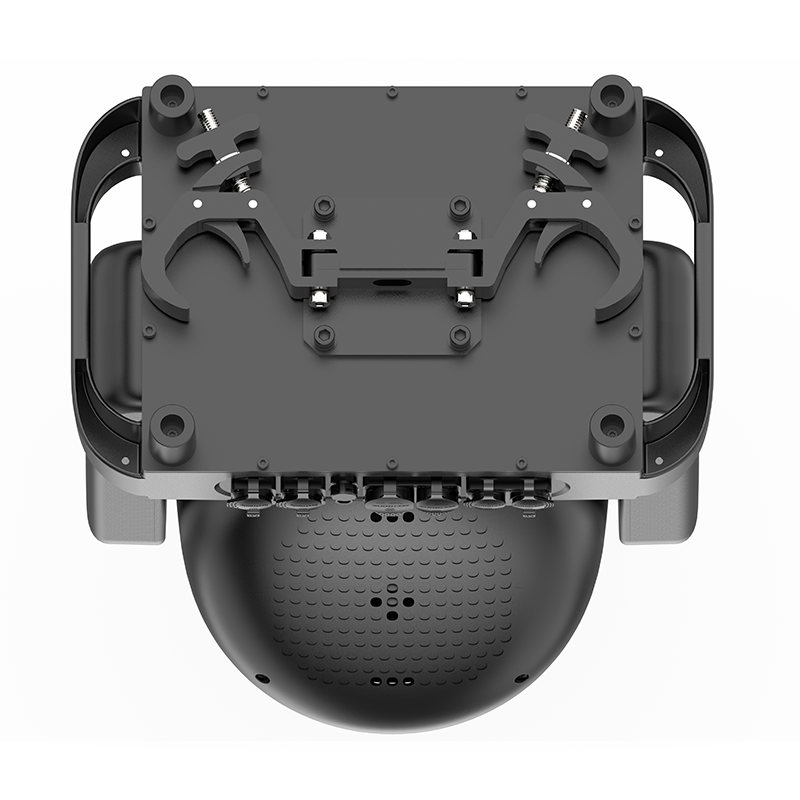

Hanger picture
Fly case(optional)


Inventory code:B0101090001

Lighting quantity on one flycase:2 in1

Flycase dimension:  720×520×745mm

N.W : 42.2kg/pcs

G.W with fly case: 81.0kg (2 in 1)

Light HookPower Cable
Safety RopesSignal cable
