Description

Light Source / Power System

Voltage : AC100-240V , 50/60Hz
Power rating : 500W, PF 0.985;
Power in connector : Neutrik power
DMX and RDM data in/out : Locking 3-pin (optional:5-pin XLR)
Light source type : 12Pcs×40W RGBL LED multichips,(optional: 12×40W RGBW LED multichips)
LED life expectancy : 30000 h
Optical system : High precision combination structure, high permeable glass light rod +PMMA lens



Color / GOBO / Effects

Colour mixing mode : RGBL (optional: RGBW); Colour rainbow effect with variable speed
CTO Light output : 2200 K – 8000k;

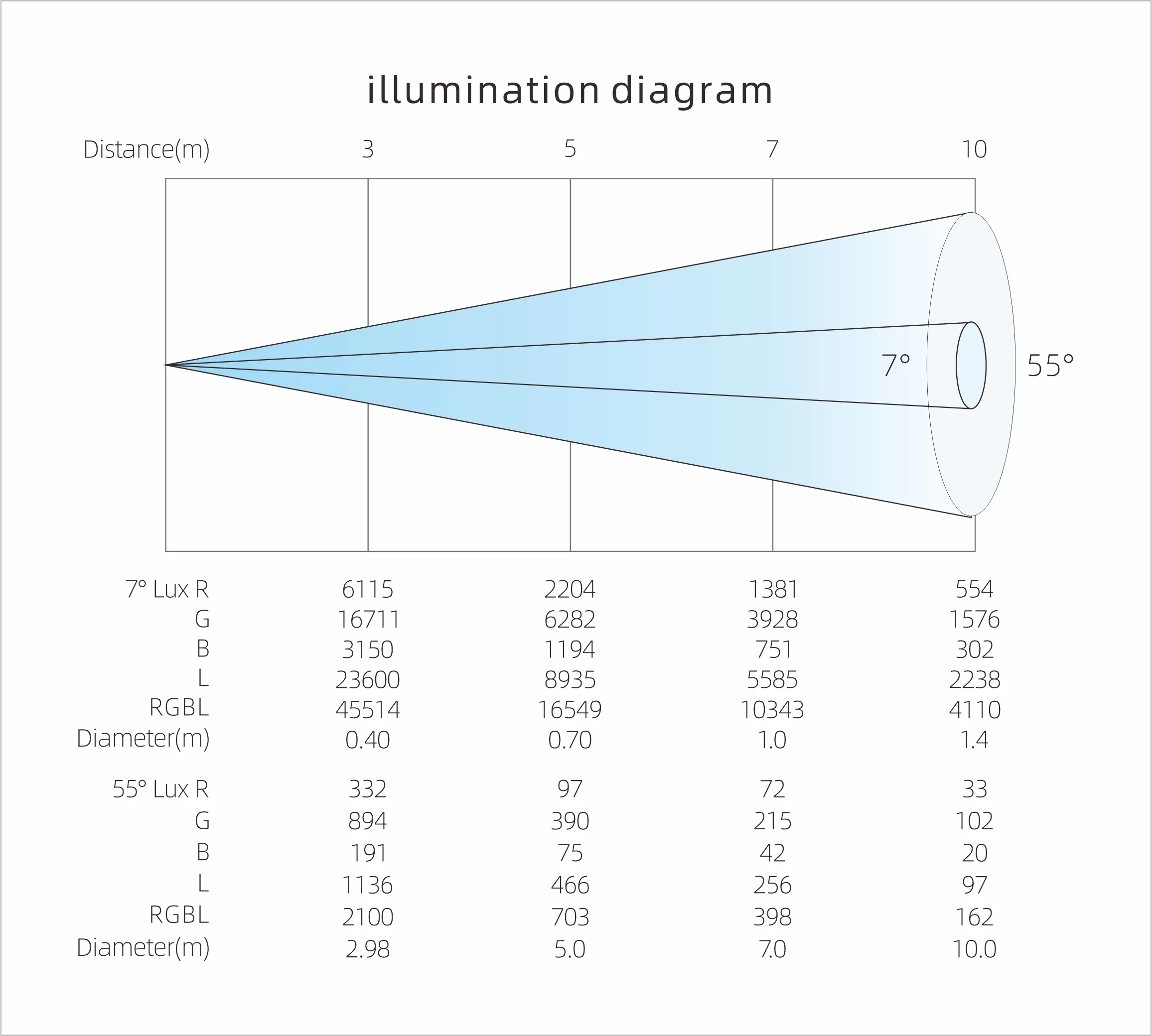

Zoom range : 7-55°
Light output : 45514 lux @3m
Beam : Small degrees beam effect
Wash : Middle and big degrees wash
FX mode : Kaleidoscope effects
Zoom system : Linear electric zoom
Lens rotation : Front lens can rotated infinity
LED Control : Multi-point control (at least 3 LED chips) effect
Ring control : Ring control effect
Fade in and out : Fade in and out gradient effect(at least 3 LED chips)
Effect macro : Static effect macro functions and Dynamic effects macro function;
Adjustable speed of effect macro function
Strobe : Pre-programmed random strobe & pulse effects(0.5-25Hz/second)
Dimmer : 0-100% linear adjustment,High resolution electronic dimming



Control System

Pan movement : 540°
Tilt movement : 270°
Pan / Tilt Resolution : 2.11°/1.05
Movement control : Standard and Speed
Pan / Tilt : Automatic Pan / Tilt position correction
IP Set : RDM two-way data transmission,Remote reset DMX address。
Display : The display panel adopts a 1.77-inch TFT screen
Intelligent control : Display board can record device’s using time , show device’s temperature, channel data and software version .
Error alarm : Automatic alarm for fixture failure
Software upgrade : Upgrade with DMX
Protocols : DMX-512, RDM
Control Channels : 26CH(Standard), 38CH(extended)



Appearance Parameters

Structure : The fixture adopted heat-proof engineering plastics and module pressing alloy materials.
IP rate : IP20

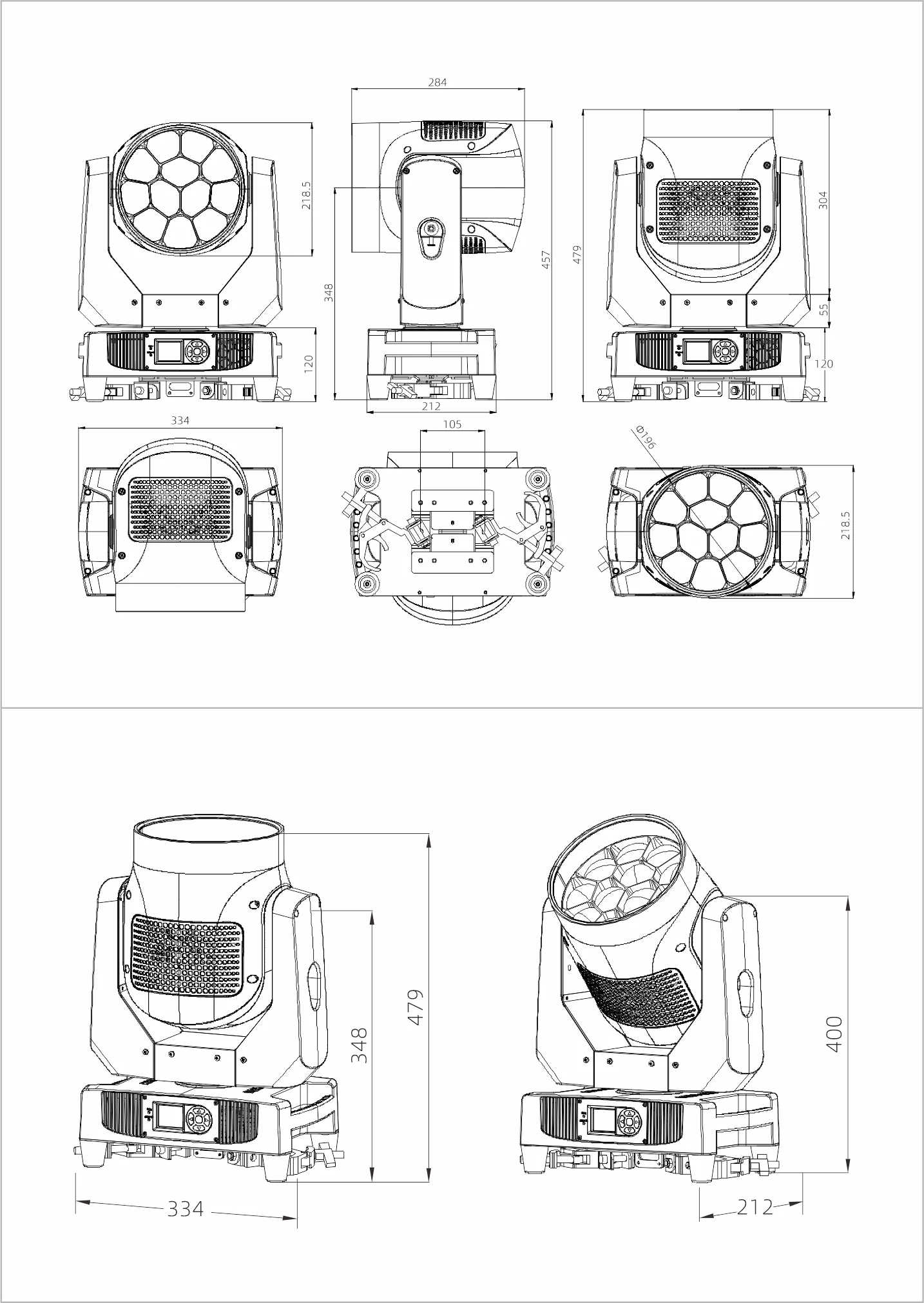

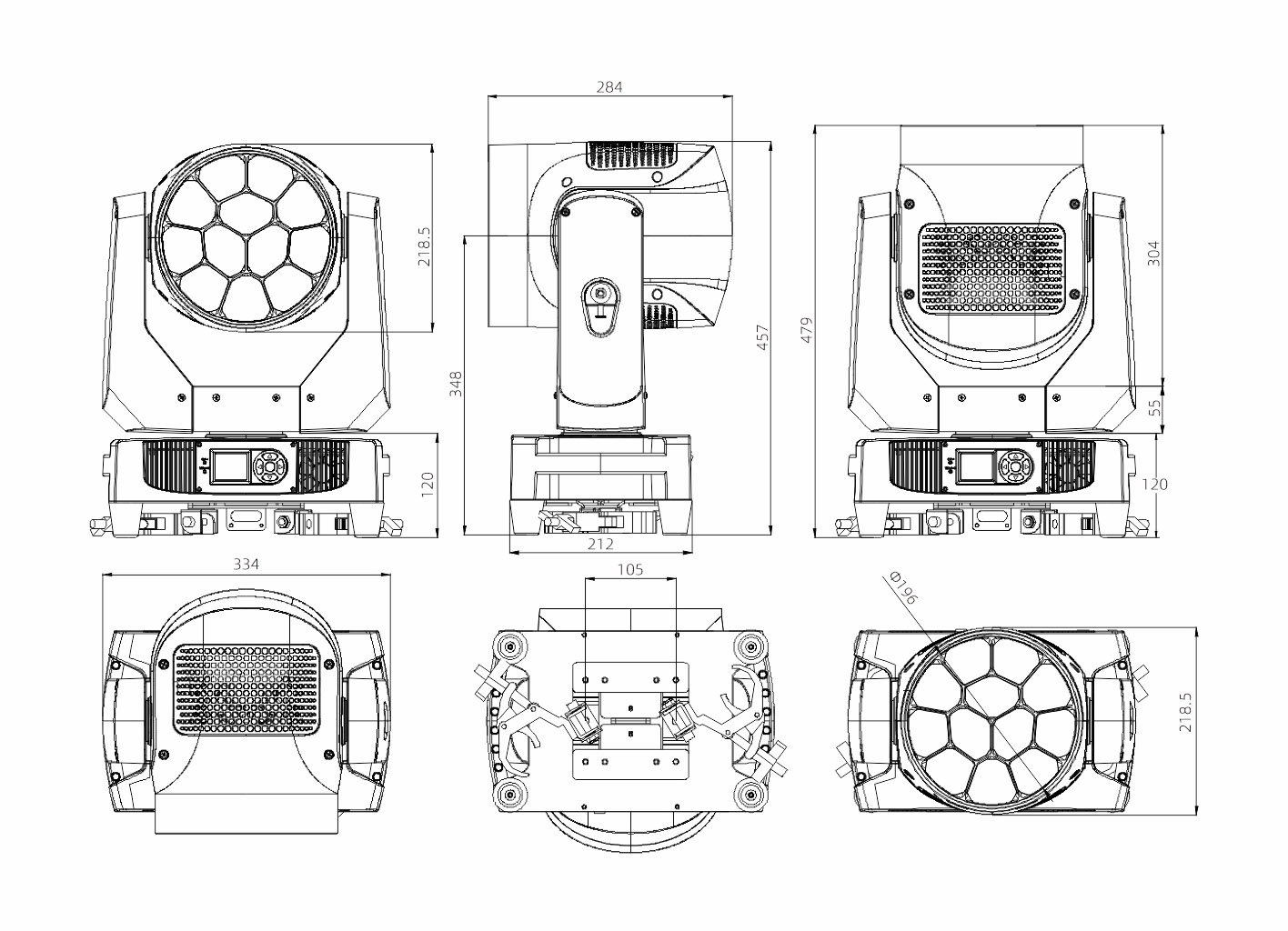

Product dimension : 334×218.5×479(mm)
Net weight : 15.3Kg
Packing dimension (carton) : 410×290×575(mm)
Gross weight (carton) : 17.6Kg

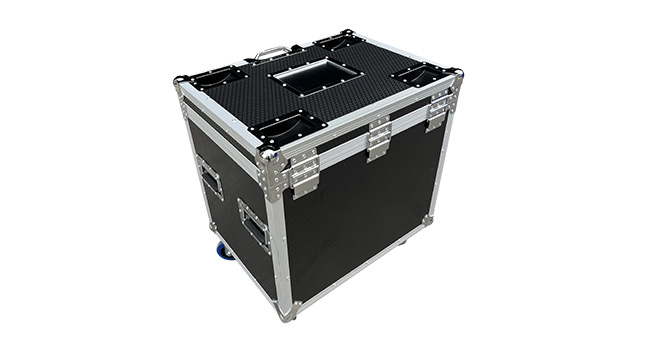

Flycase Size (2pcs in 1) : 660X500X720(mm)
N.W : 30.6Kg     G.W : 62.1Kg
