Description

OPTICAL

Light Source : 19×40W RGBW LED
Beam Angle : 5° – 25°
Zoom Angle : 7° – 45°
Color Temperature : 2500K to 10000K

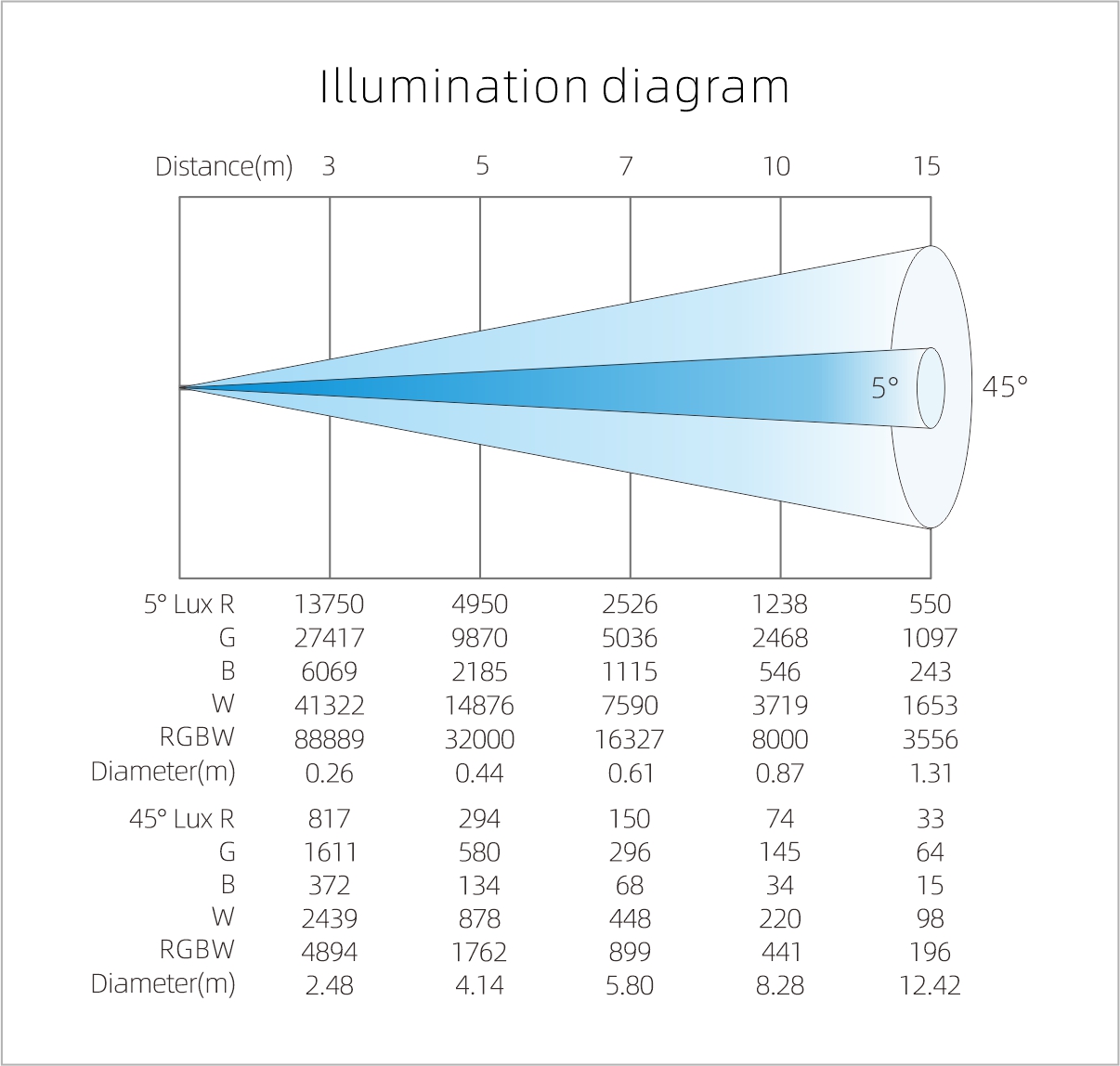

Illuminance : 32,000 lux @ 5m
Total lumen output : 9700 Lm
Light source average life span : 20,000 hours





EFFECTS

Color Mixing System : Uniform RGBW color mixing system and rainbow effect
Zoom System : Linear electronic zoom
Pixel Control : Each LED can be controlled independently for versatile color effects
Front Ring : The front luminous circle can be controlled individually to create dynamic color changing effects
Effect Macros : Includes static and dynamic effect macro functions
Dimming : Electronic dimming with four dimming curves, four dimming frequencies, and four dimming speeds
Strobe : 1-30Hz electronic strobe and random strobe effects





CONTROL AND PROGRAMMING

Control channels : 26CH, 98CH, 28CH, 100CH, 35CH (see channel chart for details)
Protocols : DMX512, RDM, Art-Net
DMX and RDM connectors : 3 pin or 5 pin XLR IN/OUT
Display : LCD screen





SOFTWARE

Software Upgrade : DMX signal interface
Temperature Intelligent Control : Ensures LED lifespan through temperature intelligent control





PAN/TILT MOVEMENT

Pan axis : 540°, 8-bit/16-bit precision scan
Tilt axis : 218°, 8-bit/16-bit precision scan





POWER AND ELECTRICAL

Input Voltage : AC 100-240V 50/60Hz
Maximum Power : 730W
Power Factor : 0.977
Maximum Current of Fixture : 3.32A/220V; 7.3A/100V





SIZE & WEIGHT

Product Dimensions : 440 × 333 × 567mm
Net Weight : 25.0 kg
Carton Packaging : 515 × 415 × 675mm
Gross Weight : 30.3 kg





THERS

IP Rate : IP66
Operating Environment : -20°C ~ 45°C
Maximum Surface Temperature of Fixture : 65°C





FACTORY CONFIGURATION

Power Cable : 1 pc (Part No.: C1400050050)
Signal Cable : 1 pc (Part No.: F0200020087)
Safety Rope : 2 pcs (Part No.: F0200010002)
Lamp Hook : 1 set (Part No.: C0499990040)





OPTIONAL ACCESSORIES/PACKAGING

Packaging(Fly case) : 860×550×760mm
Gross Weight : 90.9kg(2 in 1)

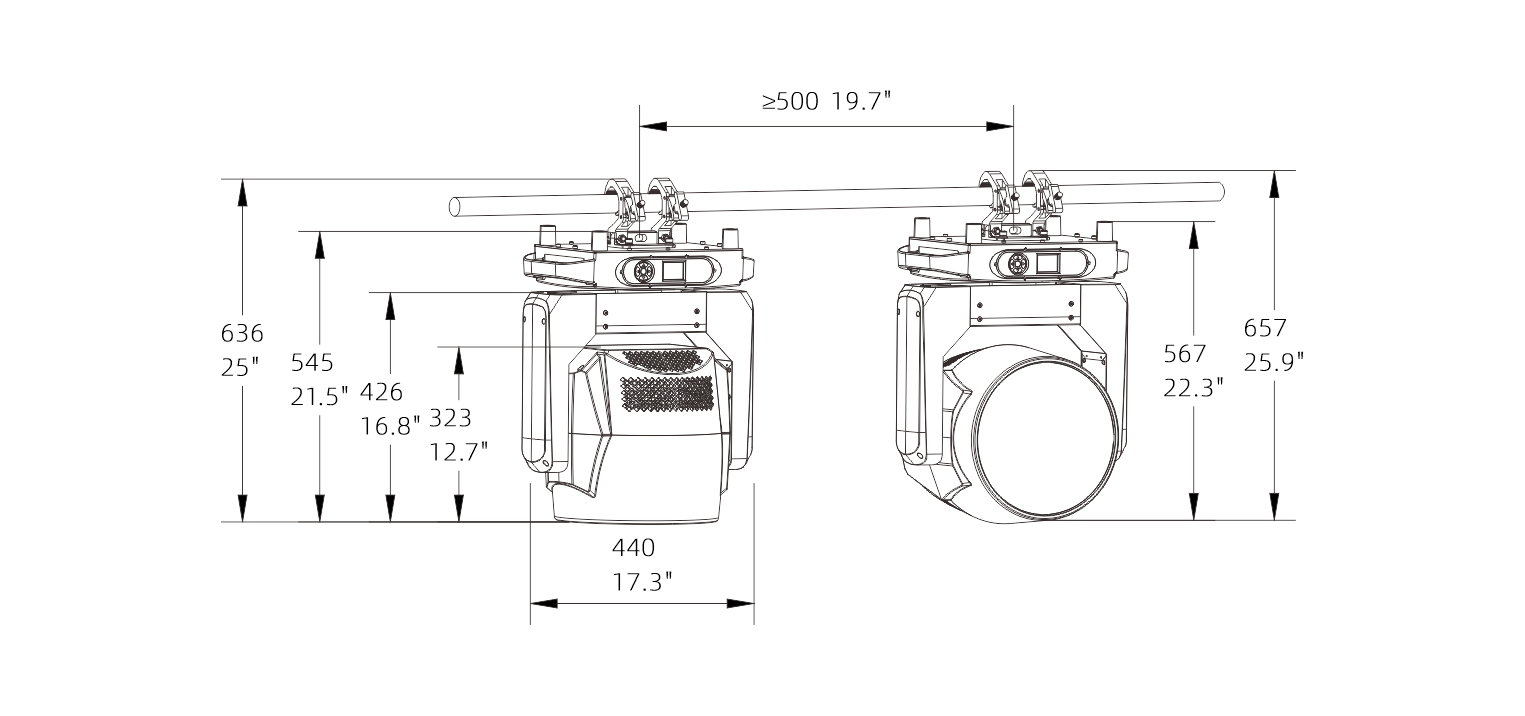

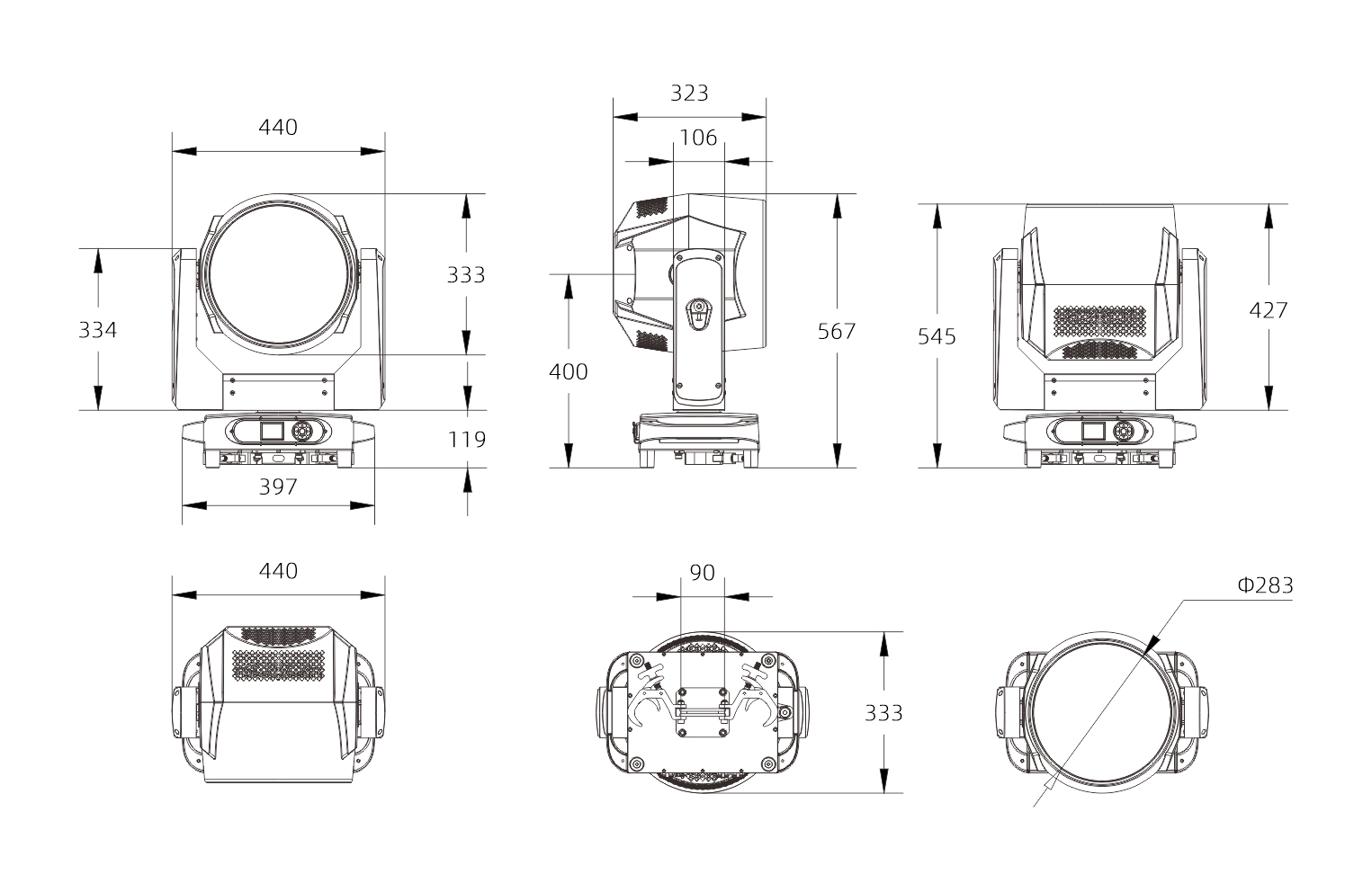

Dimension drawing

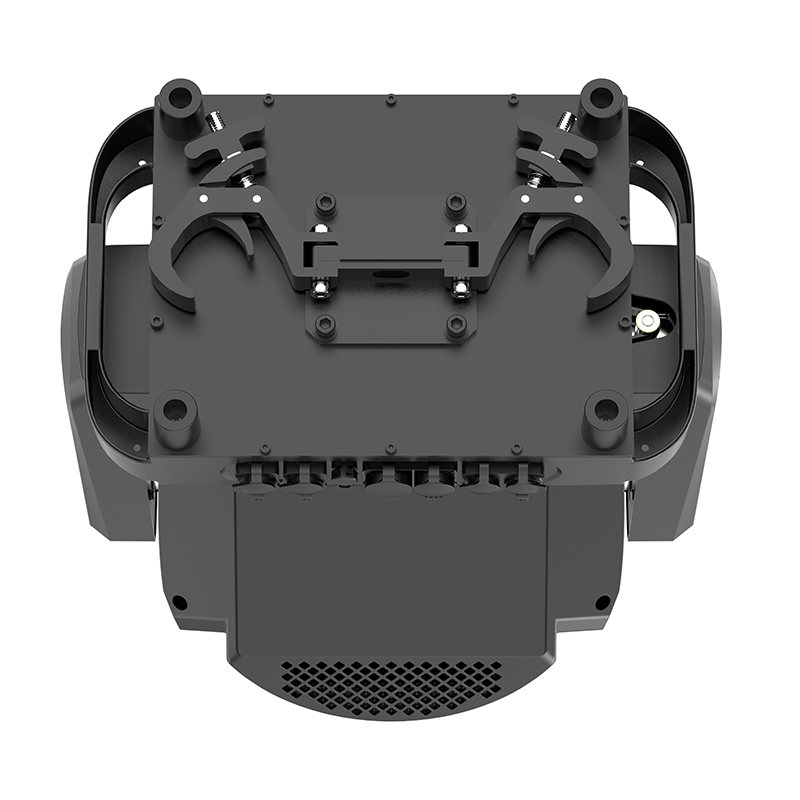

Hanger picture
Fly case(optional)


Inventory code:

Lighting quantity on one flycase:

Flycase dimension:  x  x mm

N.W : kg/pcs

G.W with fly case: kg (4 in 1)

Light HookPower Cable

Safety RopesSignal cable
