Light Source / Power System

Voltage : AC100V~240V/50Hz~60Hz
Power : 495W
Lamp : SIRIUS HRI 330W XL OSRAM
E-ballast : OSRAM E-ballast
Lamp life span : 1500h
Lamp Temperature : 7250K
Color Temperature : 2500K、3200K (optional)

Color / GOBO / Effects

Color : CMY+ 11 color filter wheel
Fixed gobo wheel : 11+1+animation range
Prism : 16 facet +32 facet (standard); 3 facet +8 facet (optional)

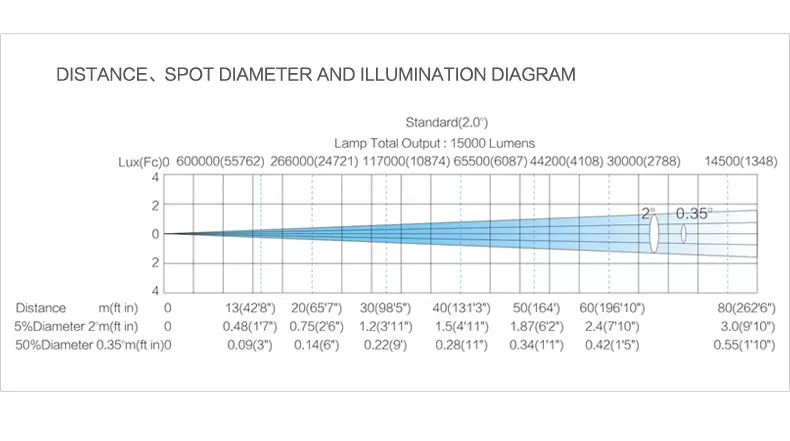

Beam Angle : 2°
Frost : 45°(standard) , 6°(optional)
Focus : linear electronic focus
Dimmer : Super smooth dimmer
Strobe : Independent strobe, 0.5 to 20 times/ seconds

Control System

Pan/Tilt : Pan: 540 degree , Tilt : 240 degree
Pan/Tilt speed : Pan: 2.9 seconds/ 540 degree, Tilt : 1.5 seconds/ 240 degree
Control : DMX 512
Channel : simple channel : 20 CH, Standard channel : 24 CH

Other functions

Other feature : display board has record function, which can record lamp using time ,fan’s speed 100W power would lower automatically under full shutter condition

Appearance Parameters

Outlooking : Independent shape design PA66 plastic material, Anti UV, anti-aging, high temperature resistance
IP rate : IP44

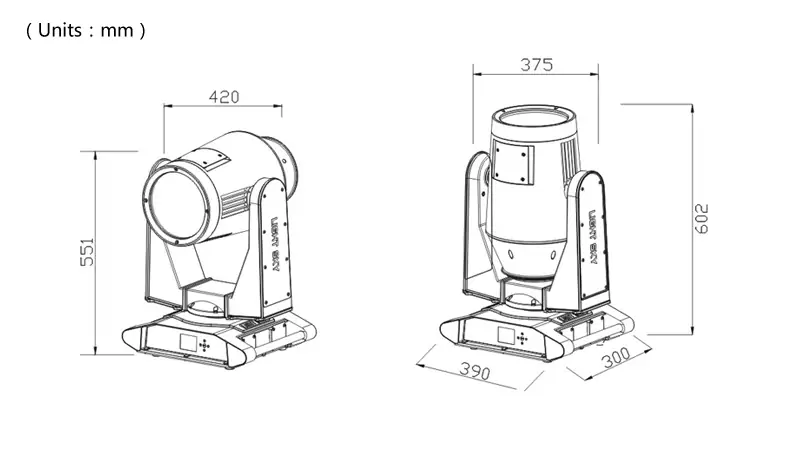

Light Size : 390x300x602(mm)
Carton Size : 450x430x750(mm)
N.W : 23Kg G.W : 29.5 Kg
Fly case size : 940x635x845 (mm) 2pcs in 1
N.W : 46Kg G.W : 96 Kg
