Super Scope Aqua DMX Patch Guide: Setting Up 4in1 BSWP in grandMA and Hog 4

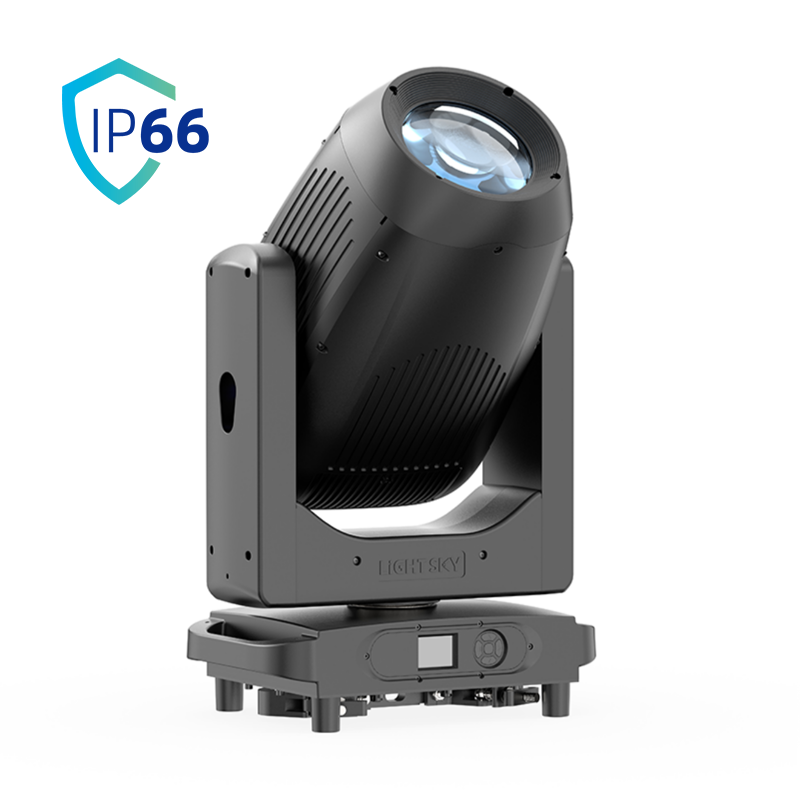

Setting up lighting solutions can often feel like a complex puzzle, especially when incorporating innovative products like the 520W LED BSWP 4in1 Moving Head fixture. The ability to manipulate and control lighting dynamics seamlessly is crucial for any event production or live performance. At LiGHT SKY, we understand the intricacies involved in creating that perfect light show, and today we’ll be diving into an essential guide on applying the 4IN1 LED moving BSWP featuring a waterproof beam spot wash profile with grandMA and Hog 4 systems.
Understanding the Basics of DMX Patching
DMX (Digital Multiplex) protocol has transformed the way we control lighting. It allows multiple lights to be managed from a single control source, improving efficiency in multi-light setups. The 520W LED BSWP 4in1 Moving Head is a versatile fixture that combines the functions of a beam, spot, wash, and profile into one unit. This multifaceted approach provides an extensive range of creative opportunities, catering to various environments and events. It’s important to grasp the general principles of DMX addressing and patching to utilize these fixtures optimally, ensuring a smooth flow of signals between your lights and control systems.
Patching in grandMA
To begin with, connecting your 4IN1 LED moving BSWP to the grandMA system is straightforward. After you power on the lights, identify their DMX address. Each fixture needs a unique address, which can typically be set via a menu on the fixture itself. Engaging with the grandMA software, you’ll need to navigate to the patching section. Select the appropriate fixture type from the library, ensuring that you match it to its designated DMX address. Conducting a test run is advisable to fine-tune your setup, so you can inspect if the waterproof beam spot wash profile reacts correctly to your instructions.
Utilizing Hog 4 for Enhanced Control
Transitioning the conversation to Hog 4, which is another exceptional DMX control option, requires some similar initial steps. Each fixture’s address should again be defined on the fixture, ensuring compatibility with the control settings in Hog 4. You can access the patch menu and find the 520W LED BSWP 4in1 Moving Head from the device library. Like in grandMA, ensuring the addresses align is fundamental for functional control over the lighting fixture. The real beauty of Hog 4 comes into play with its extensive effects engine, which allows you to create visually stunning displays by utilizing the full spectrum of capabilities.
Troubleshooting Common Setup Issues
Despite thorough preparation, encountering challenges during setup is not uncommon. Issues such as non-responding lights or misconfigured fixtures can arise. At LiGHT SKY, troubleshooting is a vital part of the process. For instance, if a fixture fails to respond, double-check the DMX channel assignments and confirm that all connections are secure. If working with a waterproof beam spot wash profile, ensure proper sealing is maintained, especially in outdoor settings. Understanding these challenges can save time and energy during setups, allowing for smoother production flows.
Conclusion
Setting up the 520W LED BSWP 4in1 Moving Head and the 4IN1 LED moving BSWP in grandMA and Hog 4 is an enriching experience that can elevate your lighting design capabilities. By mastering the DMX patching techniques, understanding the unique features of your fixtures, and troubleshooting any issues effectively, we at LiGHT SKY believe that your lighting setups can reach new heights. Always keep learning and experimenting, as each event brings new opportunities for creativity and expression in your lighting applications.
