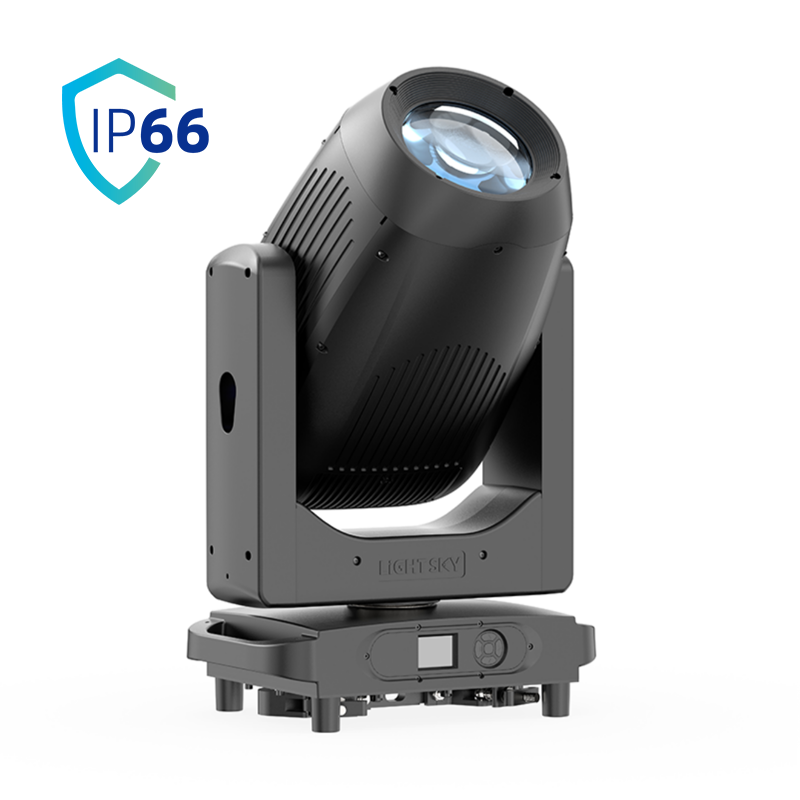

520W LED BSWP 4IN1 Moving Head: The All-in-One Fixture Reshaping Live Production

Publish Date: 2026-05-13

In modern stage environments, lighting systems are required to balance precision, flexibility, and reliability across concerts, touring shows, and broadcast productions. The 520W LED BSWP 4IN1 MOVING HEAD developed by LiGHT SKY reflects this demand by integrating beam, spot, wash, and profile functions into a single fixture. As a waterproof BEAM SPOT WASH PROFILE, it is designed to support complex creative requirements while maintaining stable performance in diverse installation conditions. The concept behind the 4IN1 LED moving BSWP system is to reduce fixture redundancy while expanding optical and effect capabilities for lighting designers.





Integrated Optical Design for Flexible Projection



At the core of the 520W LED BSWP 4IN1 MOVING HEAD is a 520W high-brightness LED engine paired with a 146 mm large-aperture front lens. This optical system enables a wide zoom range from 3.8° to 50°, allowing smooth transitions between tight beams and broad wash coverage. With a peak output of up to 34,500 lux at 10 meters, the fixture provides consistent projection quality for mid-to-large scale venues. As a waterproof BEAM SPOT WASH PROFILE, it ensures stable operation in both indoor and outdoor environments, aligning with LiGHT SKY’s focus on durable engineering.



Advanced Color and Gobo Control for Precise Atmosphere



The 4IN1 LED moving BSWP system integrates a sophisticated color architecture, including smooth CMY mixing and linear CTO correction for accurate white balance adjustment. A dedicated color wheel with six filters and one high-CRI filter further enhances color rendering precision. In addition, the fixture incorporates one rotating gobo wheel with seven interchangeable glass gobos and one static gobo wheel with seven fixed patterns. These elements allow the 520W LED BSWP 4IN1 MOVING HEAD to generate layered textures and adaptable atmospheric effects suitable for broadcast and theatrical applications.



Framing and Weatherproof Engineering for Touring Demands



To meet the demands of professional touring, LiGHT SKY equips the waterproof BEAM SPOT WASH PROFILE system with a dynamic animation wheel, motorized iris, and dual frost filters. These features support smooth visual transitions and beam softening when required. The integrated 4-blade framing system, capable of ±90° rotation, enables precise beam shaping with sharp, distortion-free edges. This mechanical precision reinforces the value of the 520W LED BSWP 4IN1 MOVING HEAD as a reliable tool in complex stage environments where flexibility and consistency are essential.



System Integration Value in Modern Lighting Workflows



The 520W LED BSWP 4IN1 MOVING HEAD represents LiGHT SKY’s approach to consolidating multiple lighting functions into a single efficient platform. As a 4IN1 LED moving BSWP, it reduces system complexity while maintaining a high level of creative control. By combining beam, spot, wash, and profile capabilities in a single waterproof BEAM SPOT WASH PROFILE, it supports streamlined rigging, efficient operation, and adaptable design workflows for contemporary live production environments.
