Light source & Optics

Light source: 2 x 230W WRA COB
Beam Angle: 50°

Spot Angle: 84.6°
Color Rendering Index: RA≥93.5
ColorTemperature: 2653K±250K
Liaht Flux: 21,747 Lm

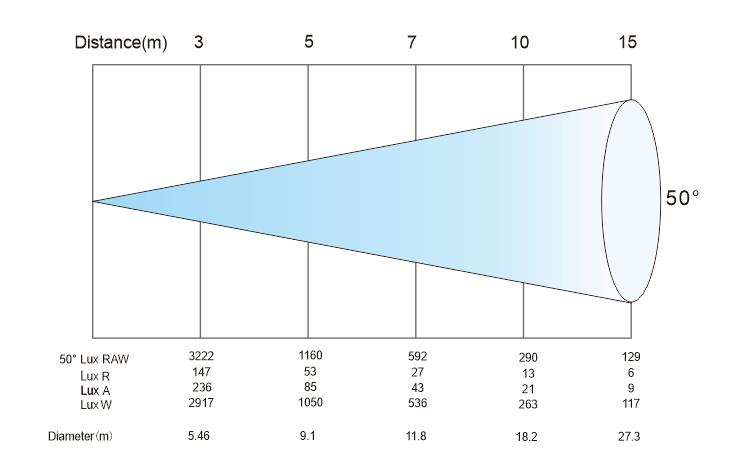

Illuminance: 1,160 lux@5m
Light source average life span: 20,000 hours

EFFECTS

Dimming: Electronic dimming with four dimming curves

Dimming Effect: Simulates traditional tungsten lamp response

Strobe: 1-30Hz electronic strobe and random strobe

CONTROL AND PROGRAMMING

controlchannels:Standard modes 1CH/2CH/8CH/14CH (see channelchart for details)

ControlProtocols:DMX512,RDM,ART-NET(optional)
Data Connection: 3-pin or 5-pin signal input/output

Display: LCD screen

SOFTWARE

Software upgrade: via DMX interface
Temperature control: Intelligent system for LED lifespan

POWER AND ELECTRICAL

Rated Voltage: AC 100-240V 50/60HZ
Maximum Power: 464W
Power Factor: 0.99
Maximum Current: 4.7A/100V 2.1A/220V

SIZE & WEIGHT

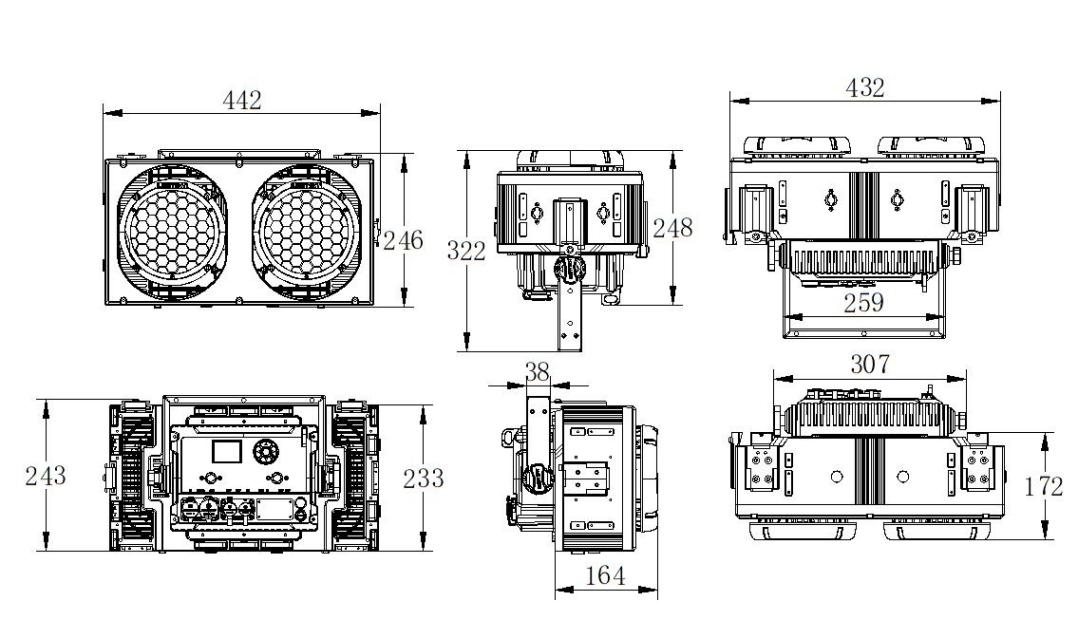

Product Size:442x322x248mm
Net Weight: 11.3 kg

OTHERS

Protection Level: lP66
Operating Environment:-20°C~45°C
Maximum Surface Temperature: 65°C

FACTORY CONFIGURATION

Power cable:1pc(Part No.:F0200030016)
SiqnalCable:pc(PartNo.:F0200020008)
Safety Rope:2 pcs (Part No.: F0200010002)

Optional accessories/packaging

Flight case dimensions: 960×700×465mm

Flight case gross weight: 79.0 kg
