HS880(For South Korean Only)

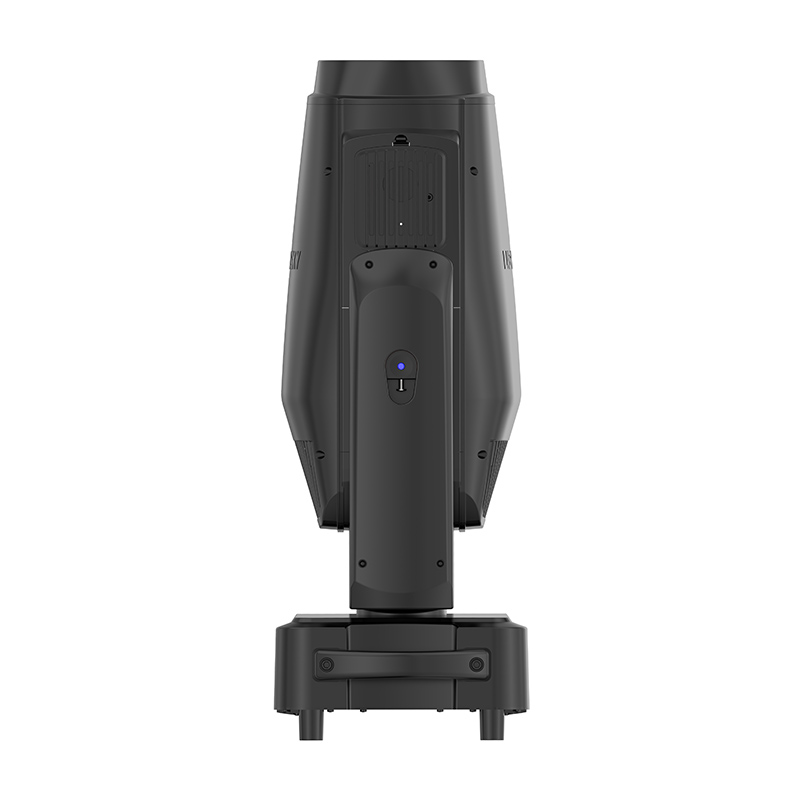

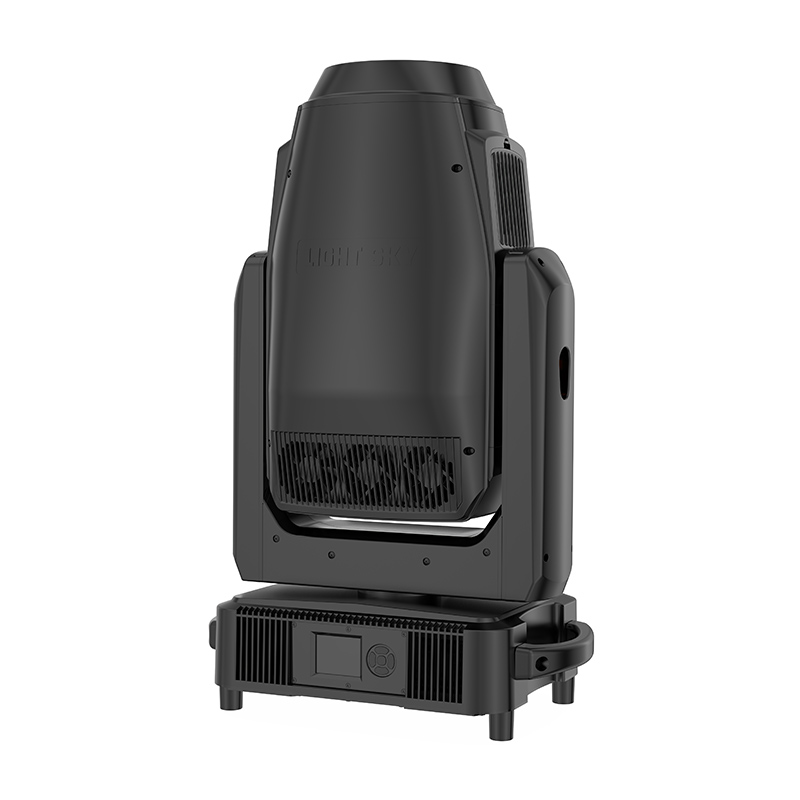

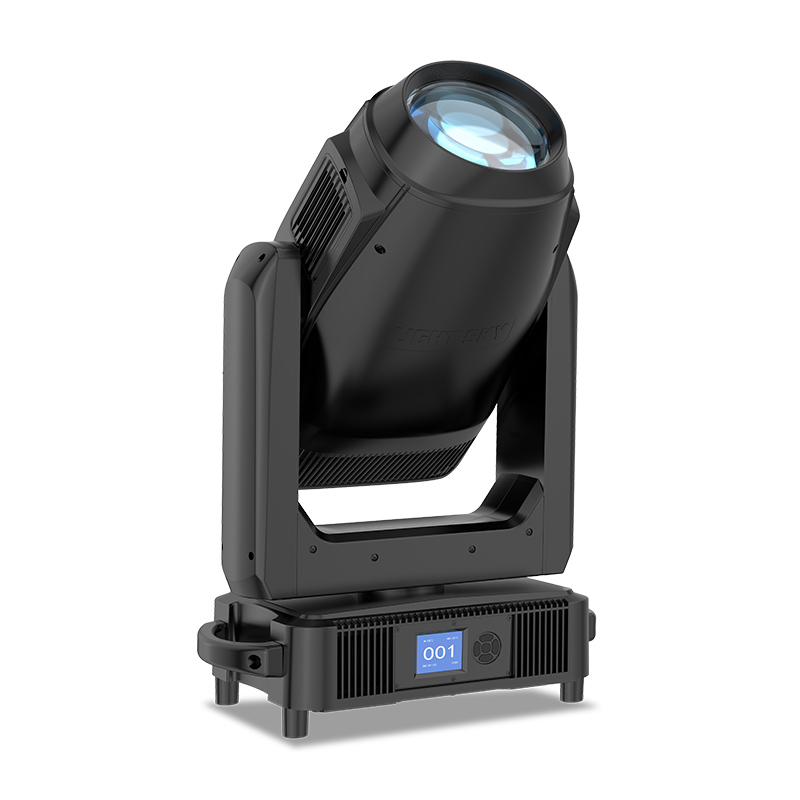

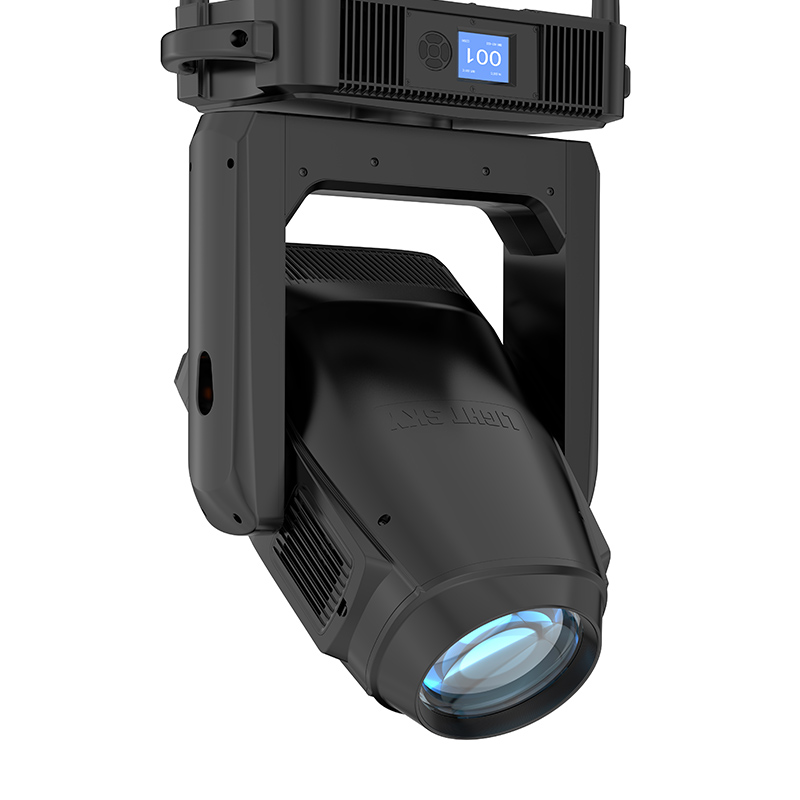

Unleash maverick stage illumination with the Super Scope Plus beam spot moving head light. This 4-in-1 moving head spotlight adopts a high-efficiency optical lens, low-noise heat dissipation, multi-pattern selection, and more. This moving head spotlight ensures powerful and immersive stage illumination, making it perfect for theaters, TV stations, large concerts, gymnasiums, and other high-end performance events and sites. We provide comprehensive and professional after-sales service and technical support for our customers. If you are interested in the Super Scope Plus beam moving head light, feel free to contact us; we are happy to assist you.

FEATURES

Multi-Function: The Super Scope Plus series moving head spotlight is a moving headlight with a beam spot wash profile with a 4-in-1 function.
High-Precision Optical: The optical system on the Super Scope Plus adopts high-precision optical components with a 180-mm-diameter lens.
Long distance and powerful illumination: The Super Scope Plus beam spot moving headlight is capable of providing long-distance projection with high illumination.
Easy Transportation: The Gobo module consists of two rotating Gobo wheels.
Multi-pattern: The Super Scope Plus spot moving headlight has multiple pattern styles with high clarity and color consistency from the center to the edge of the pattern.
High flexibility: The cutting module can rotate ±55°, and the cutting image is clear without distortion;
Long-Range Beam: The Super Scope Plus moving head spotlight can output illuminance up to 40800 lm.
Suitable Space: Super Scope Plus is suitable for theaters, TV stations, large-scale concerts, gymnasiums, and other high-end performance sites

Description

Description

Parameters

OPTICAL

Light source : 880W white LED module
Light source average lifespan : 20000H
Color temperature : 6800K
Total lumen output : 40800Lm
Luminance : 32000lux@10M
Color rendering index : RA≥71
Front lens diameter : 180mm
Zoom angle : 5.5°- 52°

COLOR

Color wheel : 6 color + Blank
C M Y : Linear CMY colour mixing
C T O : Linear CTO from 2800K to 6800K

GOBO

Framing system : 4 blade ,each blade can be eight direction and +/- 55 degree rotation
Animation wheel : 1 dynamic animation wheel -flame effect
Rotation gobo wheel : 2 rotation gobo wheel ,each with 7 pcs interchangable gobo

EFFECTS

Prism : 4 facet prism + 4 linear prism + bidirection rotation
Frost : 2 frost system : light frost 1° and Heavy frost 20°
Iris : Motorized with variable pulse and random effects
Strobe : Electronic pulse strobe and random strobe
Focus : Motorized focus
Dimmer : 0 to 100% linear dimmer
LED refresh frequency : 1000Hz ~ 25KHz

CONTROL

Control protocol : DMX 512，RDM ,ARTNET
Channel mode : 43CH , 55CH
DMX and RDM connectors : Locking 3 pin or 5 pin XLR IN/OUT
Power connector : Seetronic
Hanging system : foldable light hook
Interface ：RJ45 interface (optional)
Display : LCD liquid crystal display

SOFTWARE

Software : Upgrade software via DMX signal or USB interface
Noise level control : High brightness mode，Standard mode，Silent mode
Intelligent temperature control : Intelligent temperature control to extend LED lifespan

X/Y ANGLE OF MOTION

Pan / Tilt : 540°/270°

POWER

Voltage : AC 100-240V 50/60Hz
Power : 1280W; PF 0.996

SIZE & WEIGHT

Housing : Engineering plastic PA66
Light Dimension : 442 x 258 x 788mm
N.W : 37.5kg/pcs
Carton dimension : 520 x 370 x 870mm
G.W with carton : 42.6 kg
Flycase dimension : 660 x 520 x 840mm
G.W with fly case : 71.0kg (1 in 1)

OTHERS

IP rating : IP20
Working environment : -10℃ ~ 40 ℃
Maximum temperature of light body surface : 80 ℃
Maximum number of connections : none
Maximum current; 6.4A/220V；12.8A/110V
