Light Source / Power System

Volatage : AC198-264V ,50-60HZ

Power : 2000W, power factor PF ≥0.98

Lamp : OSRAM lok-it HTI 1700PS

Life Span : 750H

Ballast : Electrical Ballast

Reflector : Double Reflector Cup design,German optical coating process

Lens : φ200mm Diameter,

Luminous Flux Output : 37000lm


Color / GOBO / Effects

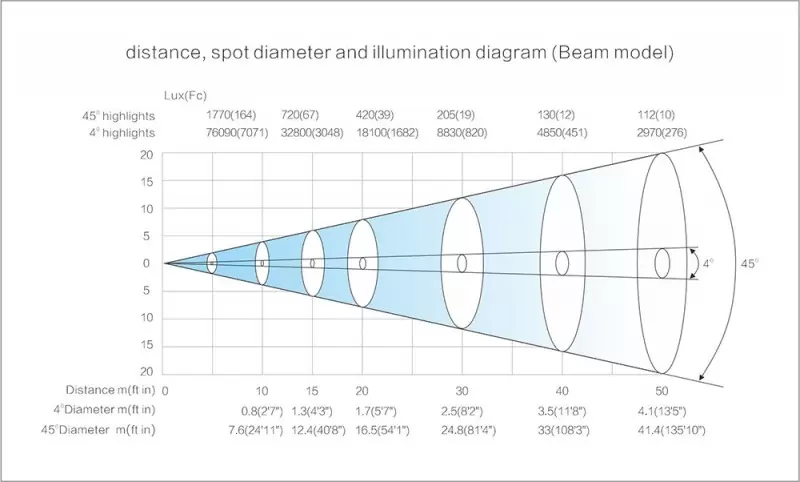

Zoom Range : 4-45 degrees

CRI : ≥90

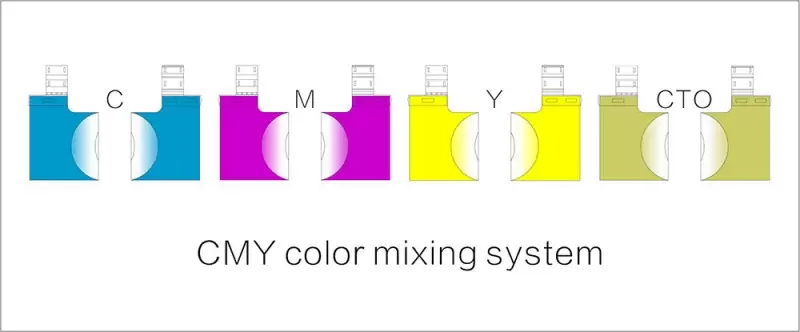

Color Mixing System : CMY Infinite Color Mixing System, linear color mixing function

Color Temperature : 2700K-6500K linear adjustment,Linear CTO adjustment

Framing Shutter system : 8 facet& 4 blades framing shutters modules, framing shutter system can be rotated by 90 degrees

Iris : 5-100% linear adjustment aperture, with macro function, the speed is adjustable.

Frost : 1 degrees and 20 degrees, can be combined

Dimming : 16 bit, 0-100% linear dimming

Strobe : 1-9 Hz synchronization, pulse, random


Control System

Pan/Tilt : Pan/Tilt : 540/270 degrees Pan/Tilt Fine : 2.11 / 1.05 degrees; Pan/Tilt speed : 2.5 S / 1.5 s

Control protocol : DMX512, RDM, Art-net, wireless DMX512(optional)

Control Channel : Standard 32CH

Display : 2.8 inch color LCD,English/Chinese two version language

Working Mode : Silent , Standard, High brightness three modes

Intelligent control : Display board can record device’s using time , show device’s temperature, channel data and software version .

Temperature control : Intelligent temperature control, can automatically adjust the speed of the cooling fan and overheat protection


Other functions

Error alarm : Automatic alarming for fixture error

DMX Address setting : built-in long-life battery, can set address without power connection

Software upgrade : upgrade via USB interface

Lamp control : Remote Control Lamp switch On/Off, automatically reduce the lamp power when the Shutter is ON


Appearance Parameters

Outlooking : plastic cover parts are made of engineering plastic PA66+GF, with fire-proof, noise reduction, impact resistance, high temperature resistance, anti-aging characteristics;

IP rate : IP22

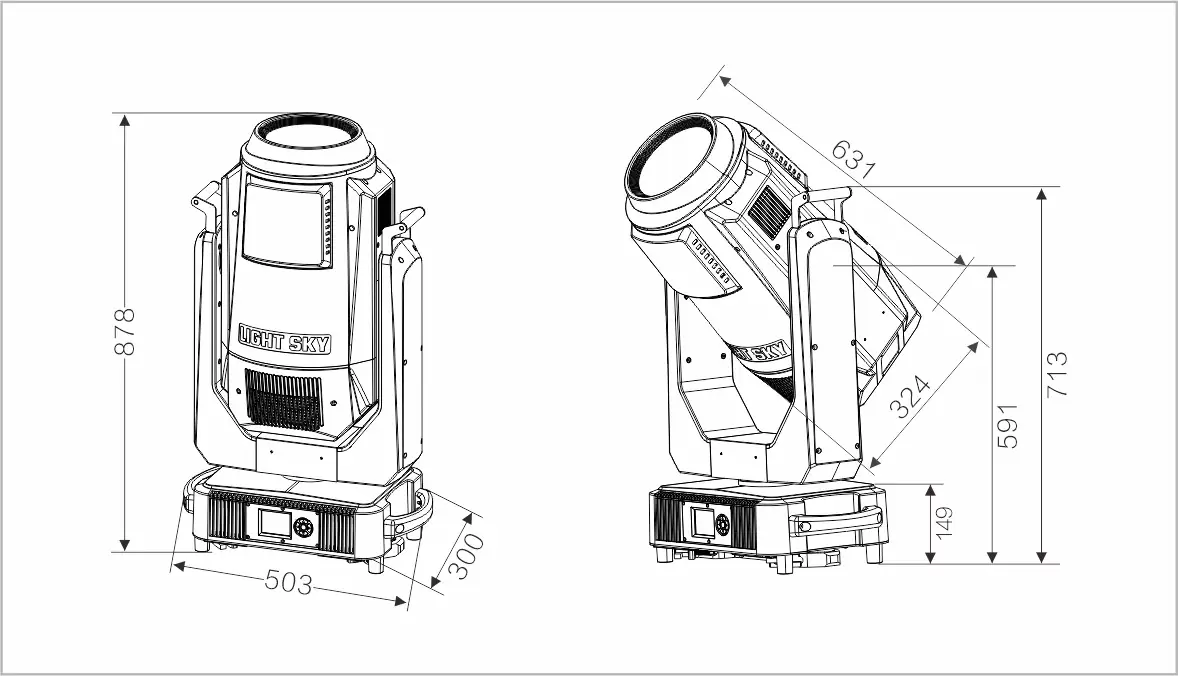

Light Size : 503x324x878 mm

A single carton size : 960x570x395mm

N.W : 41 kg G.W : 46 kg

Flight Case : 765x610x970 mm

N.W : 41 kg G.W : 85.5 kg
