Description
Light Source / Power System
Input Voltage Range: AC 100-240V 50/60Hz
Max Power Consumption: 210W
LED Source: OSRAM LEDs
LED Quantity: 42 x 6W
Light Source Power: 200W light source module
Light Source Theory Life Span: 50,000 h
Colour Temperature Output: 3000K
CRI (Color Rendering Index): Ra≥91
TLCI Index: ≥90
Dimming: 65,536 levels, flicker-free dimming
Strobe: 1-30 times/second
Lens: Glass Fresnel lens
Zoom Angle: 10-60 degrees, motorized zoom adjustment
Protocols: DMX512
Control Mode: 4CH
SIZE AND WEIGHT
Product Dimensions: 535mm x 310mm x 470mm
Net Weight: 7.6 kg
Carton Dimensions: 340mm x 290mm x 745mm
Gross Weight: 9.6 kg
Carton Dimensions (4 in 1): 710mm x 610mm x 775mm
Gross Weight (4 in1): 41.2 kg
Optional Accessories/Packaging
Flycase Dimensions(4 in 1): 720mm × 600mm × 930mm
Flycase Gross Weight(4 in 1): 70.5kg
Flycase Dimensions(6 in 1): 1120mm × 600mm × 800mm
Flycase Gross Weight(6 in 1): 91.0kg

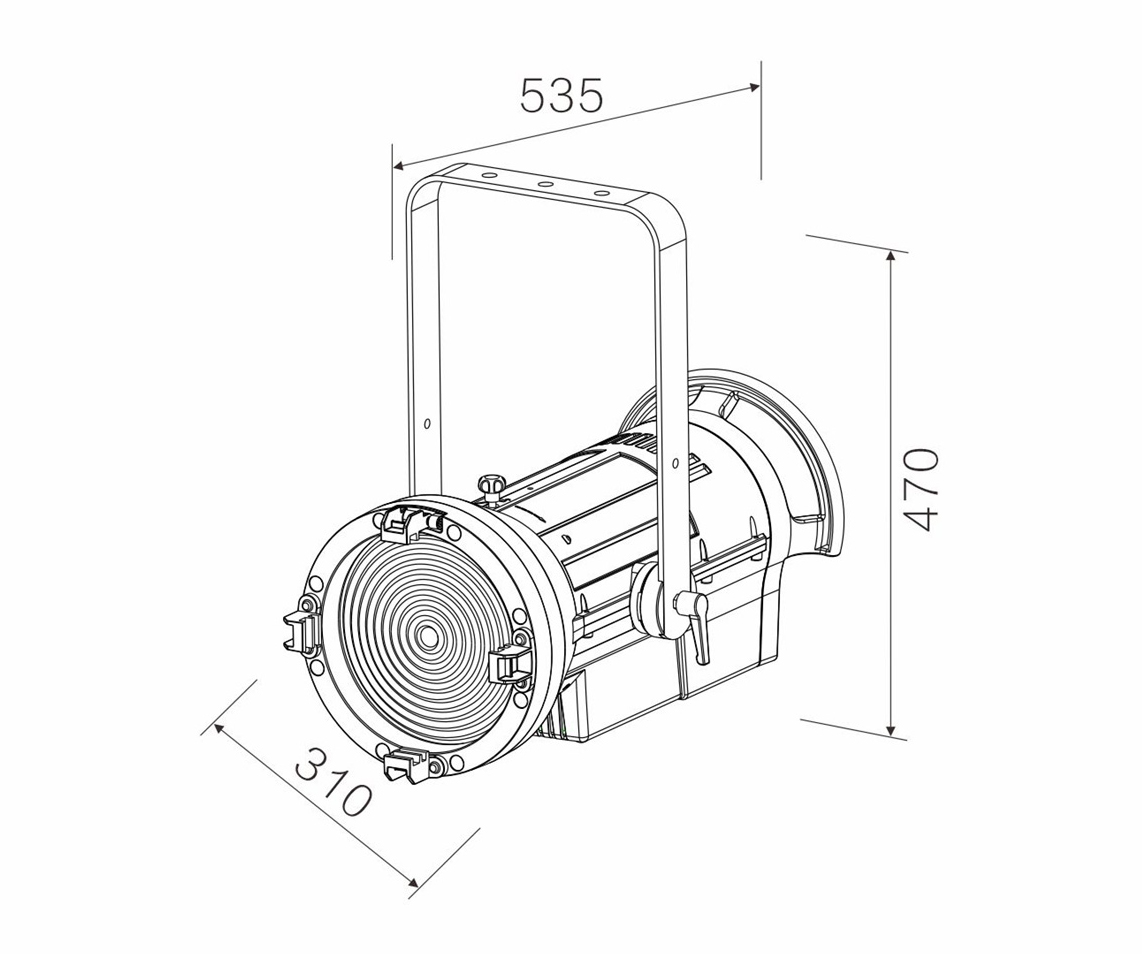

| Dimension drawing | |
 |
|

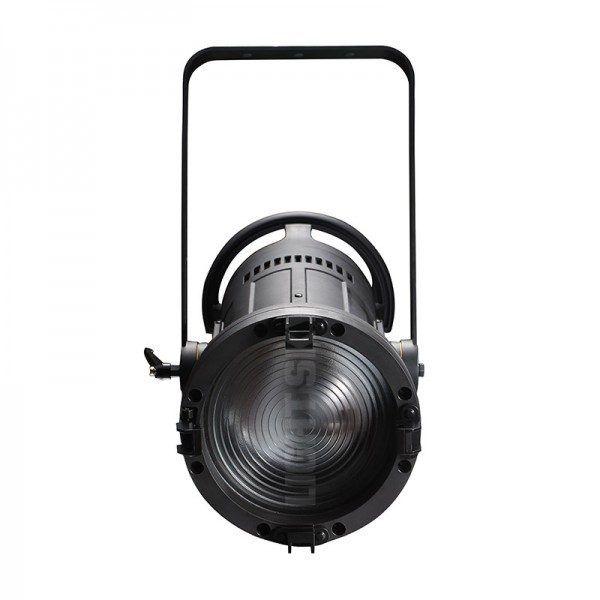

| Hanger picture | |
| Fly case(optional) | |
| Light Hook | Power Cable |
 |
|
| Safety Ropes | Signal cable |
 |
 |
