Light Source / Power System

Voltage : AC100-240V 50/60Hz
Power : 600W
Lamp Power : 450W(LIGHT SKY NSL-450 USHIO)
Color temperature(Lamp) : NSL450(7300K)
Average lifespan : 1200h
Strobe : double strobe structure ,0.5-9 times/second(adjustable)
Dimmer : 0-100% linear adjustment


Color / GOBO / Effects

Color : 1 white color+14 color wheel, quick rainbow effect
Fixed Gobo : 1 blank gobo+11gobo +3 animation range
Prism : 8 prism+16 double prism + prism combination

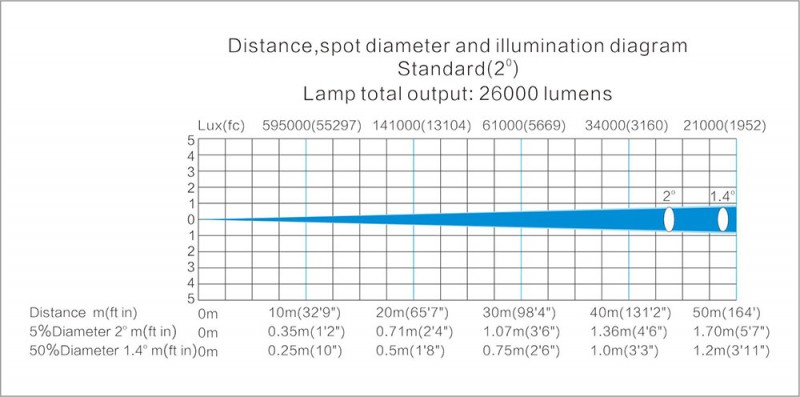

Beam angle : 0-2.0°
Focus & lens : high precision groups of agglutination optical lens
Frost : adjustable frost angle


Control System

Control mode : DMX512、RDM
Channel : standard 16CH, simple 14CH,16PLUS
Motor : 12PCS super quiet motor


Other functions

IP address : built-in long-lifed battery which no need
electricity connected when set IP address
USB intelligent upgrade system : through USB can upgrade
software system by each and by group (in the same DMX cable)
Other functions : remote control lamp switch, fan’s speed 100W
power would lower automatically under full shutter condition.
Safety system : built-in over-current and overheat protection
system, automatically interrupt lamp power when the heating
or cooling system failure.
Cooling system : adopt axial flow fan which can intelligent
adjust speed and abstract heat according to the environment.


Appearance Parameters

IP Rate : IP20
Outlooking : adopt anti-aging and anti-fire plastic cover,
high strength alloy cold pressing molding core material

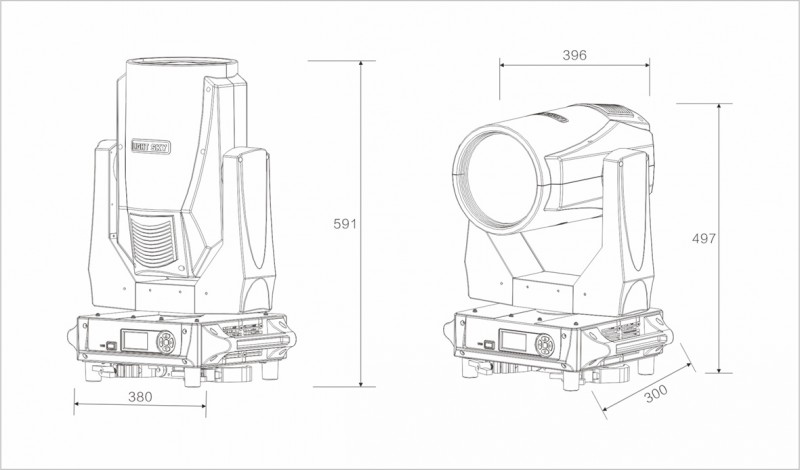

Light Size : 380X300X591mm
N.W : 20.8 Kg
A single carton size : 445X365X670mm
N.W/G.W : 20.8 Kg/24.2Kg
2Pcs to a Flycase : 820X535X800mm
N.W/G.W : 41.6Kg/77.8Kg
