Light Source / Power System

Voltage : AC100-240V 50/60Hz
Lamp Power : 400W(LIGHT SKY NSL400L USHIO)
Color temperature(Lamp) : 7300K
Average lifespan : 2000 hours / normal 6000 hours/eco
Power : 590W
Luminous flux : 21117 Lm

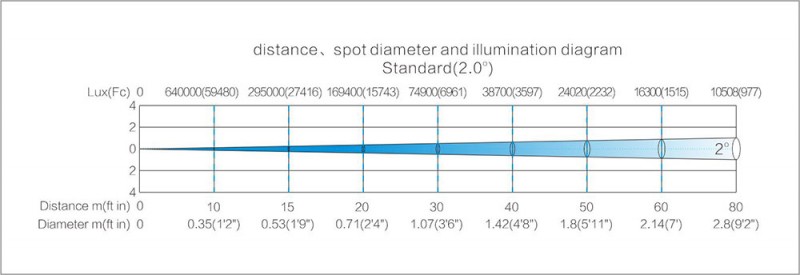

Beam angle : 2.0°
Focus & lens : high precision groups of agglutination optical lens


Color / GOBO / Effects

Color : 1 white color+14 color wheel, quick rainbow effect
Fixed Gobo : 1 blank gobo+11gobo +3 animation range
Strobe : double strobe structure ,0.5-12 times/second(adjustable)
Dimmer : 0-100% linear adjustment
Prism : 8 prism+16 double prism + prism combination
Frost : adjustable frost angle


Control System

Control mode : DMX512
Channel : standard 16CH, simple 14CH,16PLUS
Motor : 12PCS super quiet motor


Other functions

IP address : built-in long-lifed battery which no need electricity
        connected when set IP address
USB intelligent upgrade system : through USB can upgrade software
        system by each and by group (in the same DMX cable)
Other functions : remote control lamp switch, fan’s speed 100W
        power would lower automatically under full shutter condition.
Safety system : built-in over-current and overheat protection system,
        automatically interrupt lamp power when the heating or cooling system failure.
Cooling system : adopt axial flow fan which can intelligent adjust
        speed and abstract heat according to the environment.


Appearance Parameters

Outlooking : adopt anti-aging and anti-fire plastic cover,
high strength alloy cold pressing molding core material

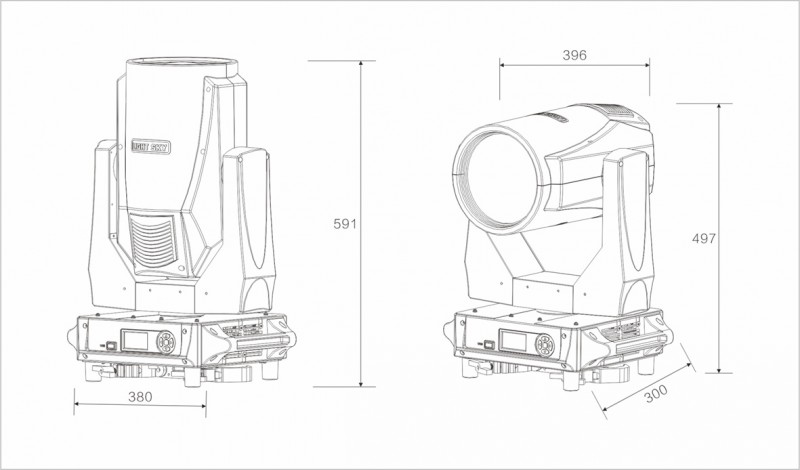

Light Size : 380X300X591mm
N.W : 20.8 Kg
A single carton size : 445X365X670mm
N.W/G.W : 20.8 Kg/24.2Kg
2Pcs to a Flycase : 820X535X800mm
N.W/G.W : 41.6Kg/77.8Kg






Attention : All downloaded light library files on this site need to be decompressed before they can be used.
